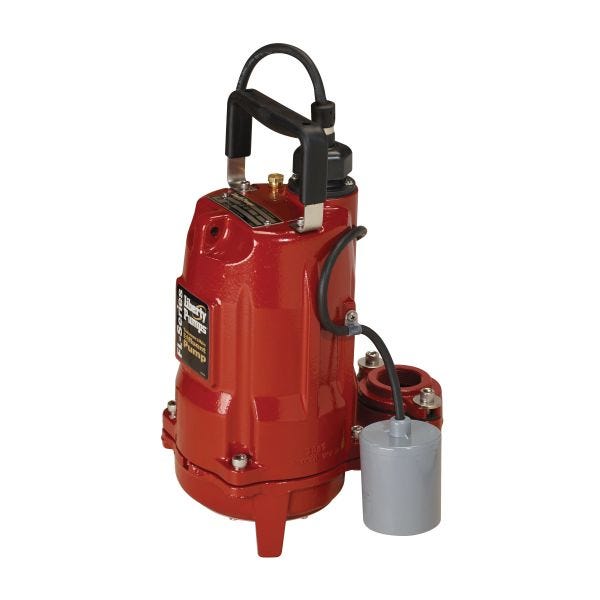

Liberty Pumps FLH61A
*HIGH HEAD EFF PUMP 115V .6HP
SKU
756367
Liberty Pumps®, FLH61A, High-Head, Series: FLH60, 74 gpm Maximum, 15 ft Rated Head, Automatic/Non Automatic: Automatic, 1-1/2 in, 2 in FNPT Outlet, 6/10 hp, 115 VAC, 12 A Full Load/38.9 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 10 ft Cord, Cast Iron Multi-Vane Semi-Open Impeller, 104 deg F Continuous/140 deg F Intermittent, NEMA 1/4X Enclosure, Ball/Race Bearing, 11.2 in W x 7 in D x 16.4 in H Dimensions
- Semi-open impeller permits passage of solids without clogging
- Heavy cast iron construction
- 416 stainless steel rotor shaft
- Oil filled hermetically sealed motor
- Permanently lubricated upper and lower ball bearings
- Unitized carbon and ceramic shaft seal
- Automatic, series plug
- 10 ft quick connect power cord
- 3/4 in solid handling
- Stainless steel fasteners
- 2 in FNPT with a 1-1/2 in FNPT cast iron flange provided
- The exterior of the casting shall be protected with powder coat paint
| Motor Speed | 3450 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Automatic |
| Enclosure Type | NEMA 1/4X |
| Maximum Flow Rate | 74 gpm |
| Type | High-Head |
| Rated Head | 15 ft |
| Cord Type | SJOOW 10 ft |
| Temperature Rating | 104 deg F Continuous/140 deg F Intermittent |
| Amperage Rating | 12 A Full Load/38.9 A Locked Rotor |
| Outlet Size | 1-1/2 in, 2 in FNPT |
| Phase | 1 ph |
| Bearing Type | Ball/Race |
| Dimensions | 11.2 in W x 7 in D x 16.4 in H |
| Impeller Type | Cast Iron Multi-Vane Semi-Open |
| Series | FLH60 |
| Material | Cast Iron |
| Horsepower | 6/10 hp |
| Brand | Liberty Pumps |
