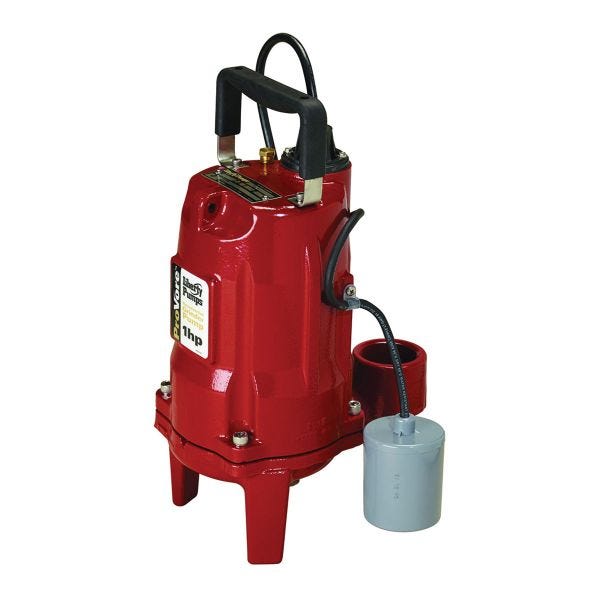

Liberty Pumps PRG101A
PROVORE 1HP 115V GRINDER W/
SKU
567392
Liberty Pumps®, PRG101A, 1-Stage, Series: PRG, 44 gpm Maximum, 30 ft Rated Head, Automatic/Non Automatic: Automatic, 2 in FNPT Outlet, 50 ft Maximum Head, 1 hp, 115 VAC, 12 A Full Load/47.5 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 10 ft Cord, 1 Service Factor, Cast Iron Impeller, 221 deg F Thermal Overload, Upper Ball/Lower Ball Bearing
- Higher flow rates allow use with 2 in discharge lines
- Heavy cast iron construction
- Shreds difficult solids that can jam a solids-handling style pump
- Hardened stainless steel cutter and plate
- Oil filled, thermally protected motor
- Unitized silicon carbide shaft seal
- Quick connect 10 ft power cord
- Patented V-Slice® cutter technology
- PRG Series grinders can be used as a replacement pump in 2 in discharge systems using LE40 and LE50 Series solids handling pumps
- PRG Series flow rates do not exactly match LE Series flow rates, consult factory with actual application and head specifications prior to replacing LE40 and LE50 Series pumps
| Material | Cast Iron |
|---|---|
| Service Factor | 1 |
| Outlet Size | 2 in FNPT |
| Cord Type | SJTW 10 ft |
| Motor Speed | 3450 rpm |
| Series | PRG |
| Bearing Type | Upper Ball/Lower Ball |
| Rated Head | 30 ft |
| Frequency Rating | 60 Hz |
| Type | 1-Stage |
| Horsepower | 1 hp |
| Maximum Flow Rate | 44 gpm |
| Maximum Head | 50 ft |
| Impeller Type | Cast Iron |
| Automatic/Non Automatic | Automatic |
| Temperature Rating | 221 deg F Thermal Overload |
| Amperage Rating | 12 A Full Load/47.5 A Locked Rotor |
| Voltage Rating | 115 VAC |
| Phase | 1 ph |
| Brand | Liberty Pumps |
