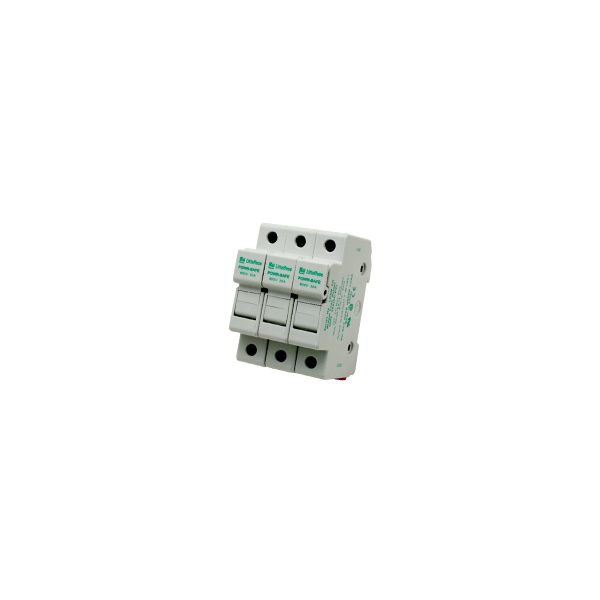

Littelfuse LPSC003ID
30A 600V 3P CC HOLDER
SKU
904598
Littelfuse® POWR-SAFE Fuse Holder, Dead Front Indicating, Series: LPSC, 600 VAC/VDC, 30 A, 3 Pole, Class: CC, Pressure Plate Connection, 14 to 8 AWG Wire, DIN Rail Mounting, For Use With: Class CC Fuse, Thermoplastic, 2.1 in W x 2.33 in D x 3.06 in H Dimensions
- Provide optimum protection to personnel
- Meets dead front requirements
- Easy installation and removal of fuses
- No special fuse pullers or tools required
- Compact design
- Ventilated design for cooler operation
- Indicates above 80 V
- 14 to 8 AWG Cu wire size
- 35 mm DIN rail mounting
| Dimensions | 2.1 in W x 2.33 in D x 3.06 in H |
|---|---|
| Wire Size | 14 to 8 AWG |
| Number of Poles | 3 |
| Amperage Rating | 30 A |
| Mounting Type | DIN Rail |
| Material | Thermoplastic |
| Suitable For Use With | Class CC Fuse |
| Voltage Rating | 600 VAC/VDC |
| Connection Type | Pressure Plate |
| Type | Dead Front Indicating |
| Class | CC |
| Series | LPSC |
| Brand | Littelfuse Inc |
