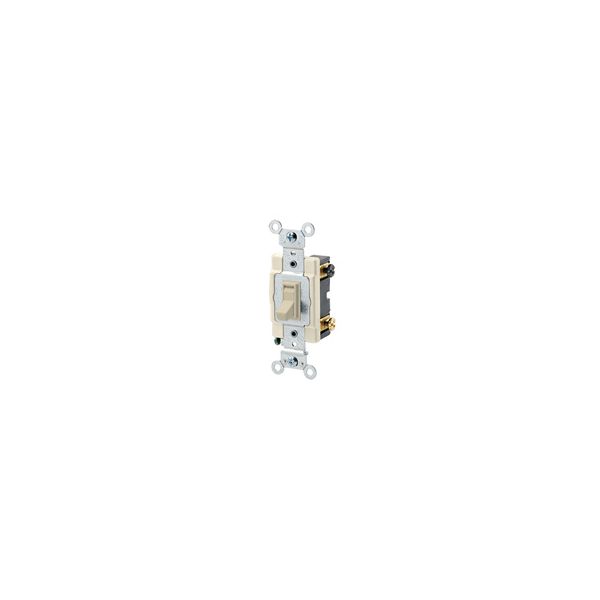

Leviton 54504-2I
4WAY 15A 277V AC SW
SKU
702163
Leviton® AC Quiet Toggle Switch, 4-Way Framed, 120/277 VAC, 15 A, 1/2, 2 hp Power, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Side Wire Terminal, Thermoplastic, Ivory, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.31 in W x 0.92 in D Dimensions
- Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation
- Heavy gauge, rust resistant steel mounting strap
- Accepts no 14 to 12 AWG copper or copper clad wire
- Convenient break-OFF plaster ears for best alignment
- Large switch contacts for maximum conductivity
- 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
| Overall Depth | 3-1/16 in |
|---|---|
| Width | 5 in |
| Dimensions | 46 in H x 1.31 in W x 0.92 in D |
| Power Rating | 1/2, 2 hp |
| Voltage Rating | 120/277 VAC |
| Series | Sentinel |
| Height | 6-1/2 in |
| Domestic/Import | Import |
| Overall Height | 6-5/8 in |
| Mounting | Surface |
| Environmental Conditions | -40 to 120 deg C Operating Temperature |
| Overall Width | 5-1/16 in |
| Depth | 3-1/16 in |
| Color | Ivory |
| Type | 4-Way Framed |
| Material | Thermoplastic |
| Terminal Type | Side Wire |
| Amperage Rating | 15 A |
| Actuator | Toggle |
| Enclosure | NEMA WD-1/WD-6 |
| Brand | Leviton Mfg |
| Amperage | 15 Amp |
| Number | 4 Pole |
| Type | Toggle |
| Voltage | 120/277V |
| Color | Ivory |
