MORRIS 01182
FEM INSUL DISCONN 22-18
SKU
681586

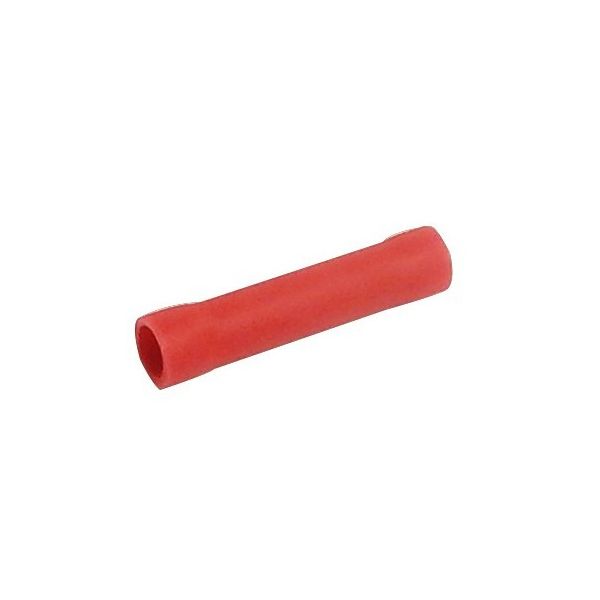

MORRIS Butt Splice Terminal, 22 to 16 AWG Conductor, 0.986 in Length, Butted Seam Barrel, 0.157 in OD Barrel, 600 VAC, 9 to 18 A Maximum Electric Current, Vinyl Insulated, 167 deg F, Electrolytic Copper Alloy, Red, Electro-Plated Tin, 0.067 in ID
- Color-coded insulation for easy identification
- Electro tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand hang up, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Butted seam prevent splitting under maximum pressure
- Crimping barrel and flared position of sleeves provide excellent contact and mechanical stress relief at insulation and barrel junction
- Packed in zip lock plastic bags with punched hole for pegboard hanging
- Restock your supplies with these Vinyl Insulated Butt Splices
- Manufactured from high strength electrolytic Copper Alloy
| Temperature Rating | 167 deg F |
|---|---|
| Color | Red |
| Dimensions | 0.067 in ID |
| Specifications | 9 to 18 A Maximum Electric Current, Vinyl Insulated |
| Barrel Size | 0.157 in OD |
| Conductor Size | 22 to 16 AWG |
| Length | 0.986 in |
| Voltage Rating | 600 VAC |
| Barrel Type | Butted Seam |
| Material | Electrolytic Copper Alloy |
| Finish | Electro-Plated Tin |
| Brand | Morris |
| Splices | Butt Splices |
