MORRIS 11044
11044 BEVELED PEDESTAL 18X10
SKU
722322

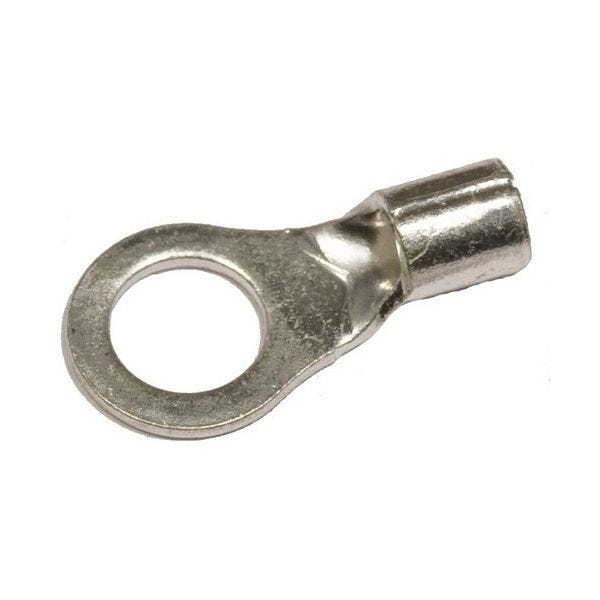

MORRIS Ring Terminal, Small AWG, 16 to 14 AWG Conductor, 5/16 in Stud, 0.858 in Length, Brazed Seam/Serrated Barrel, 0.161 in Dia x 0.189 in L Barrel, Ring Tongue, 0.472 in W x 0.031 in THK Tongue, 600 VAC, 18 to 30 A, Non-Insulated, 302 deg F, Copper, Electro-Plated Tin
- Serrated barrel with brazed seam provides excellent electrical contact and resistance to pull out forces
- Electro-plated tin for corrosion resistance
- Brazed seam prevents splitting under maximum pressure
- Wire range stamped on the surface for easy interpretation
- Non-Insulated Wiring Terminals for Electrical Terminations
- Non-Insulated Ring Terminal Material, High Strength Electro-Tin Plated Copper
| Temperature Rating | 302 deg F |
|---|---|
| Specifications | 18 to 30 A, Non-Insulated |
| Barrel Size | 0.161 in Dia x 0.189 in L |
| Conductor Size | 16 to 14 AWG |
| Length | 0.858 in |
| Stud Size | 5/16 in |
| Voltage Rating | 600 VAC |
| Barrel Type | Brazed Seam/Serrated |
| Tongue Size | 0.472 in W x 0.031 in THK |
| Tongue Type | Ring |
| Material | Copper |
| Type | Small AWG |
| Finish | Electro-Plated Tin |
| Brand | Morris |
