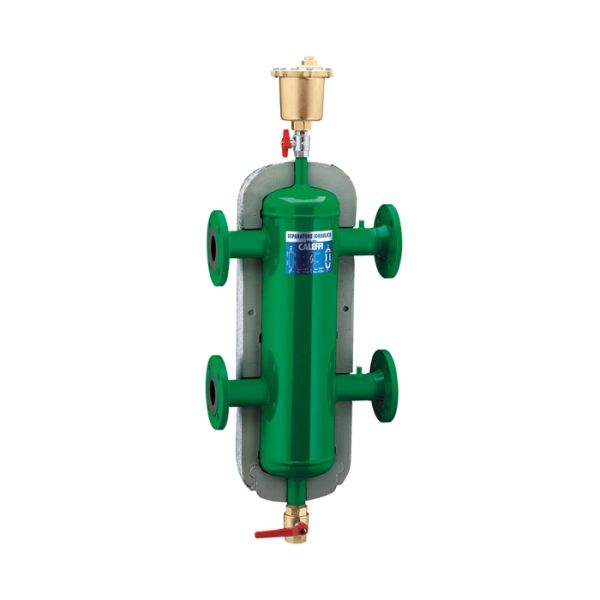

Caleffi 548066A
HYDRO SEPARATOR 1"PRESS
SKU
759353
Caleffi Hydraulic Separator, Series: 548, 1 in Nominal, Press, 150 psi Working, 32 to 210 deg F, 11 gpm, 50 % Maximum Percentage of Glycol, PE-X Insulation, Steel, 10-3/4 in W
- 300 Series stainless steel internal baffle
- Epoxy resin painted steel body
- Double density closed cell expanded PE-X
| Insulation Material | PE-X |
|---|---|
| Nominal Size | 1 in |
| Working Pressure | 150 psi |
| Flow Rate | 11 gpm |
| Maximum Percentage of Glycol | 50 % |
| Dimensions | 10-3/4 in W |
| Material | Steel |
| Connection Type | Press |
| Temperature Rating | 32 to 210 deg F |
| Series | 548 |
| Brand | Caleffi North America |
