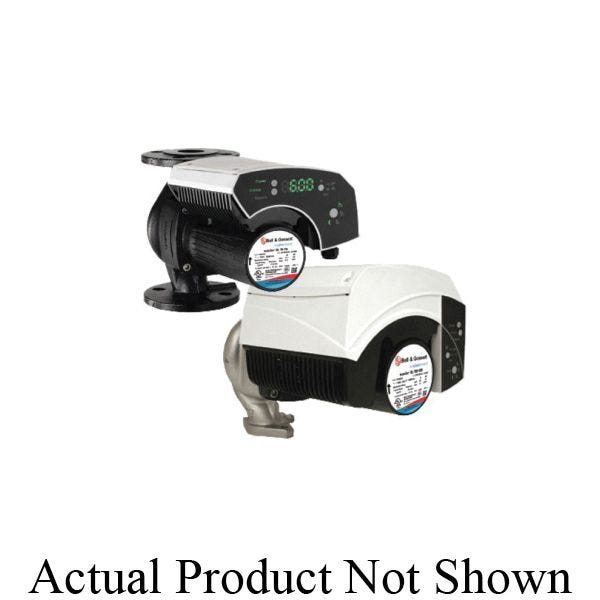

Bell & Gossett 104302
ECOCIRC XL 36-45 115V CIRC.
SKU
905369
Bell & Gossett Wet Rotor Circulator, High Efficiency Large, Series: ecocirc® XL, 45 gpm, 36 ft Maximum Head, 1/6 hp, 208 to 230 V, 0.1 to 1.5 A, 50/60 Hz, 1 ph, 175 psi Maximum, Poly-Phenylene Sulfide/Stainless Steel Impeller, 230 deg F, Class 2 IP44/NEMA Type 2, Sleeve Bearing, 7.2 in L x 9.94 in W x 6.38 in H
- Economical operation
- Efficient ECM motor
- Optimized hydraulics
- Low operational costs
- Electronics separated from the pump to prevent condensation
- Worry free operation even at 14 deg F
- User-friendly interface
- Four logically placed buttons
- Intuitive interface
- Easy to set and operate
- Built-in dry-run protection
- Stops pump if no water
- Prevent damage/repairs
- High visibility
- Clear display
- Large figures and symbols
- Easy to view pump status
- Multiple inputs
- Start-stop temp control
- Model number: ecocirc XL 36-45
| Amperage Rating | 0.1 to 1.5 A |
|---|---|
| Frequency Rating | 50/60 Hz |
| Flow Rate | 45 gpm |
| Impeller Type | Poly-Phenylene Sulfide/Stainless Steel |
| Enclosure Type | Class 2 IP44/NEMA Type 2 |
| Type | High Efficiency Large |
| Series | ecocirc® XL |
| Temperature Rating | 230 deg F |
| Phase | 1 ph |
| Dimensions | 7.2 in L x 9.94 in W x 6.38 in H |
| Voltage Rating | 208 to 230 V |
| Bearing Type | Sleeve |
| Maximum Pressure | 175 psi |
| Power Rating | 1/6 hp |
| Maximum Head | 36 ft |
| Brand | Bell & Gossett |
