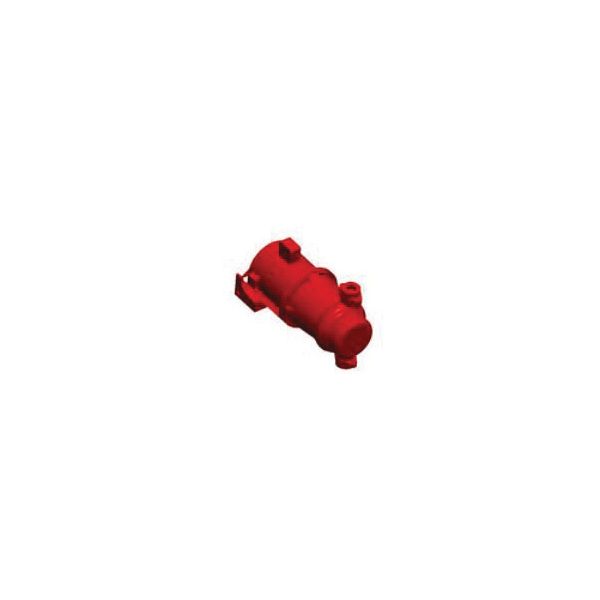

Bell & Gossett 1EF017LF
BG SERIES E-60 IN LINE PUMP
SKU
884999
Bell & Gossett Centrifugal Pump, 3-Piece In-Line Small Flex Coupled, Series: e-60 Stock, 1-1/4 in Inlet, 1-1/4 in Outlet, 1/3 hp, 115/230 V, 60 Hz, 1 ph, 175 psi Maximum, 1750 rpm Motor, Vacuum Cast Impeller, 250 deg F, Rotating Bearing, Bronze, 19.88 in L
- Class-leading hydraulic efficiency
- Upgraded unitized mechanical seal
- Permanently lubricated pump and motor bearings no regreasing
- Space saving in-line mounting
- Dimensionally interchangeable with legacy series 60
- 1 to 3 in pipe
| Frequency Rating | 60 Hz |
|---|---|
| Material | Bronze |
| Impeller Type | Vacuum Cast |
| Type | 3-Piece In-Line Small Flex Coupled |
| Series | e-60 Stock |
| Temperature Rating | 250 deg F |
| Phase | 1 ph |
| Dimensions | 19.88 in L |
| Voltage Rating | 115/230 V |
| Bearing Type | Rotating |
| Maximum Pressure | 175 psi |
| Power Rating | 1/3 hp |
| Motor Speed | 1750 rpm |
| Inlet Size | 1-1/4 in |
| Outlet Size | 1-1/4 in |
| Brand | Bell & Gossett |
