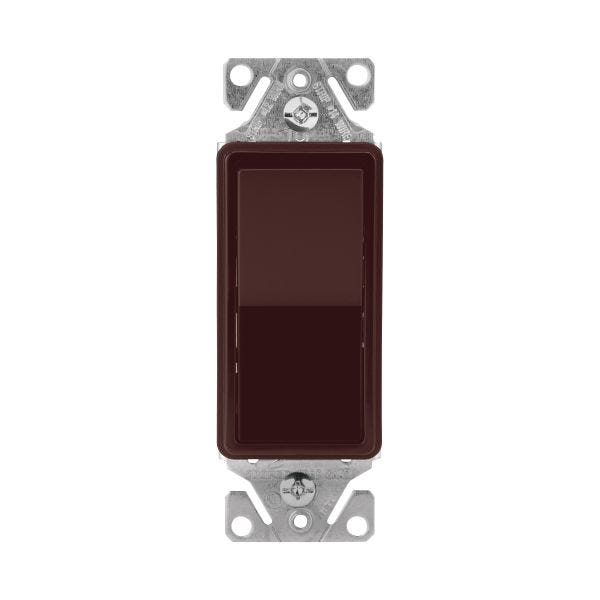

EATON 7503B-SP-L
Switch Decorator 3Way 15A 120/277V
SKU
734141
EATON AC Decorator Switch, 3-Way Standard Grade, Series: 7500, 120/277 VAC, 15 A, 15 A at 120/277 VAC Contact, Momentary Action, Paddle Actuator, Wall Mounting, Threaded Terminal, Thermoplastic, Brown, Environmental Conditions: -20 to 60 deg C Operating Temperature, 4.19 in H x 1.44 in W x 0.97 in D Dimensions
- Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide superior integrity
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Push-in terminals accept #14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
- Back-wire clamps on side terminals provide for easy installation of #12 and 14 AWG wire
- Lighted switches glow in off position
- Redesigned paddle for easier actuation and quiet operation
| Dimensions | 4.19 in H x 1.44 in W x 0.97 in D |
|---|---|
| Voltage Rating | 120/277 VAC |
| Series | 7500 |
| Action | Momentary |
| Mounting | Wall |
| Environmental Conditions | -20 to 60 deg C Operating Temperature |
| Contact Rating | 15 A at 120/277 VAC |
| Color | Brown |
| Type | 3-Way Standard Grade |
| Material | Thermoplastic |
| Terminal Type | Threaded |
| Amperage Rating | 15 A |
| Actuator | Paddle |
| Brand | Cooper Wiring Devices |
| Amperage | 15 Amp |
| Number | 3 Pole |
| Type | 3-Way |
| Voltage | 120/277V |
| Style | Decora |
