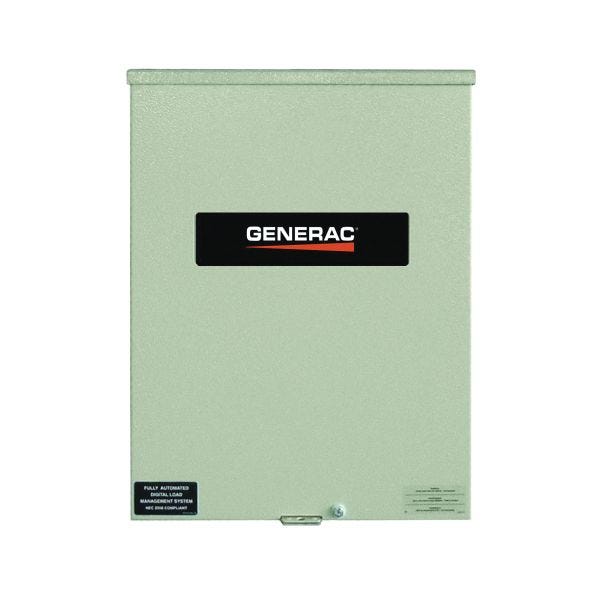

Generac RXSW100A3
SYNC 100 AMP 120/240 NEMA 3R CUL
SKU
669404
Generac® Smart Transfer Switch, Automatic, Series: RXS, 120/240 V, 100 A, 24000 W, 1 ph, 14.6 in Width, 7.09 in Depth, 20 in Height, NEMA 3R Enclosure, Aluminum, Gray, Electrostatic Baked Powder Painted
- Through the use of digital power technology, Generac® singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware
- Designed for use with single phase generators that utilize the Evolution™ or Nexus™ controller
- Aluminum NEMA/UL type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
- Simplify installation with a board that combines load management and transfer switch hardware
- Decreases transfer switch complexity
- Smaller fuses integrated into the control board
- Gain even more flexibility when used in tandem with smart management module
- The Smart A/C Module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload)
| Number of Phases | 1 |
|---|---|
| Width | 14.6 in |
| Type | Automatic |
| Voltage Rating | 120/240 V |
| Finish | Electrostatic Baked Powder Painted |
| Amperage Rating | 100 A |
| Enclosure Type | NEMA 3R |
| Depth | 7.09 in |
| Series | RXS |
| Material | Aluminum |
| Height | 20 in |
| Power Rating | 24000 W |
| Color | Gray |
| Brand | Honeywell |
