Grundfos 98562818

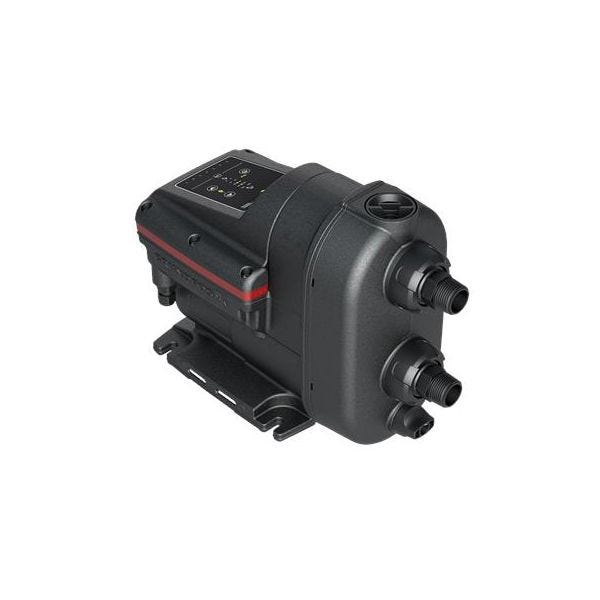

GRUNDFOS SCALA2 1X115V PUMP
SKU
692300
Grundfos Pressure Booster Pump, Series: SCALA, 13.2 gpm, 1 in NPT Inlet, 1 in NPT Outlet, 147.6 ft Maximum Head, 0.7 hp, 115 VAC, 4.9 A, 60 Hz, 1 ph, 145 psi Maximum, NORYL FE1630PW PPE+PS-GS30 Impeller, 32 to 113 deg F Ambient, NEMA 3, NORYL FE1630PW PPE+PS-GS30
- Perfect water pressure
- Low noise
- Easy selection
- Easy installation
- Easy to operate
- Reliability, long lifetime
| Maximum Head | 147.6 ft |
|---|---|
| Impeller Type | NORYL FE1630PW PPE+PS-GS30 |
| Power Rating | 0.7 hp |
| Flow Rate | 13.2 gpm |
| Power Rating | 0.7 hp |
| Amperage Rating | 4.9 A |
| Temperature Rating | 32 to 113 deg F Ambient |
| Voltage Rating | 115 VAC |
| Voltage Rating | 115 VAC |
| Series | SCALA |
| Frequency Rating | 60 Hz |
| Series | SCALA |
| Phase | 1 ph |
| Material | NORYL FE1630PW PPE+PS-GS30 |
| Material | NORYL FE1630PW PPE+PS-GS30 |
| Outlet Size | 1 in NPT |
| Impeller Type | NORYL FE1630PW PPE+PS-GS30 |
| Enclosure Type | NEMA 3 |
| Outlet Size | 1 in NPT |
| Maximum Pressure | 145 psi |
| Phase | 1 ph |
| Enclosure Type | NEMA 3 |
| Frequency Rating | 60 Hz |
| Temperature Rating | 32 to 113 deg F Ambient |
| Inlet Size | 1 in NPT |
| Maximum Head | 147.6 ft |
| Inlet Size | 1 in NPT |
| Flow Rate | 13.2 gpm |
| Brand | Grundfos |
