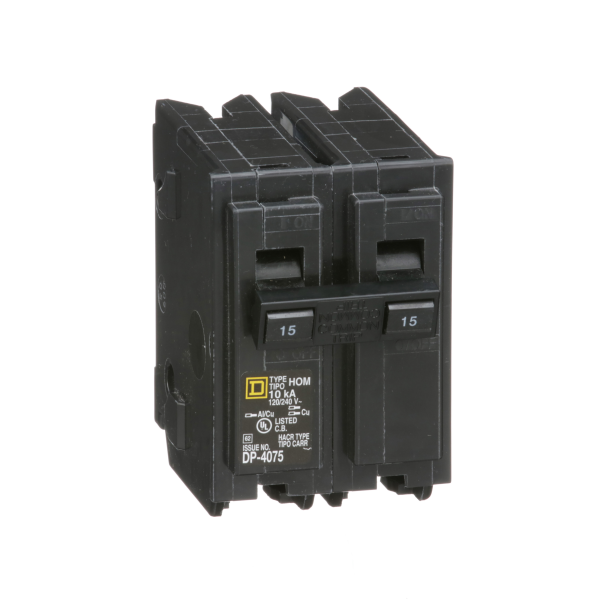

Square D HOM215
15A 2P 240V BREAKER SQD
SKU
580714
Square D™ Homeline™ Miniature Circuit Breaker, Standard, 120/240 VAC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Terminal Screw, 14 to 8 AWG Wire, NEMA 1/2, Plug-In Mount, 104 deg F, 2.98 in L x 2 in W x 3.13 in H
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Square D™ Homeline™ circuit breakers are in a 1 in wide format for 1-pole circuit breakers
- 14 to 8 AWG Al/Cu wire
| Phase | 1 ph |
|---|---|
| Wire Size | 14 to 8 AWG |
| Type | Standard |
| Frequency Rating | 50/60 Hz |
| Temperature Rating | 104 deg F |
| Enclosure Type | NEMA 1/2 |
| Number of Poles | 2 |
| Connection Type | Terminal Screw |
| Mounting Type | Plug-In |
| Dimensions | 2.98 in L x 2 in W x 3.13 in H |
| Interrupt Rating | 10 kA |
| Amperage Rating | 15 A |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120/240 VAC |
| Brand | Square D Co |
