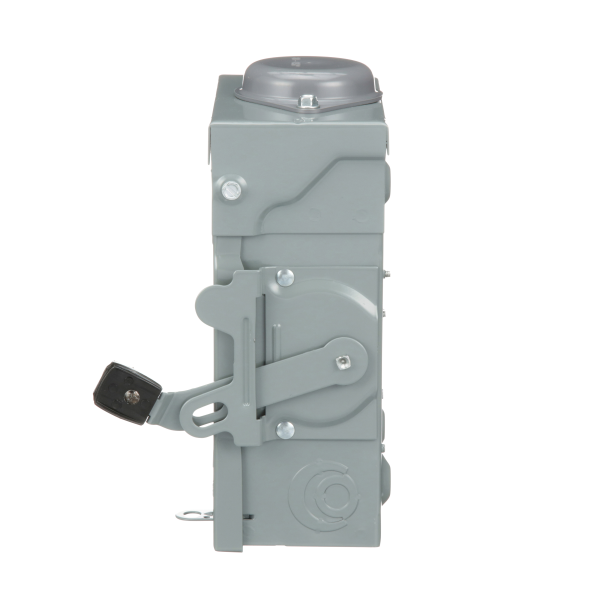

Square D DU222RB
60A 240V NON FUSED 3R DISCO
SKU
631859
Square D™, DU222RB, Safety Switch, General Duty Non-Fusible Iceproof Rainproof, Series: E1 Series, 240 VAC, 60 A, 10 hp, 1 ph, 50/60 Hz Frequency, 2 Pole, 2 Wires, 100 kA Short Circuit, DPST Contact Form, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 7.25 in W x 3.75 in D x 9.63 in H Dimensions, Steel, Hot Dipped Galvanized
- DU222RB is a Heavy Duty Safety Switch Not Fusible GD 240V 60A 2P NEMA3R with a 60A rated current
- This product is a Single Throw Safety Switch with a NEMA 3R rating This switch has a current rating and complies to UL listed Standards
- Horsepower rated for motor applications
- Tangential knockout alleviate the need for offset bends
- Spring reinforced, plated copper fuse clips
- Insulated, bonded solid neutral assemblies are standard in fusible switches
- Visible blades
- Quick-make and quick-break operating mechanism
- Cover padlock hasp and handle lock-off
- Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel
- Rainproof and sleet/ice proof
- Indoor/outdoor environmental conditions
| Material | Steel |
|---|---|
| Series | E1 Series |
| Dimensions | 7.25 in W x 3.75 in D x 9.63 in H |
| Number of Poles | 2 |
| Short Circuit Current Rating | 100 kA |
| Actuator Type | Handle |
| Frequency Rating | 50/60 Hz |
| Enclosure Type | NEMA 3R |
| Phase | 1 ph |
| Mounting Type | Surface |
| Type | General Duty Non-Fusible Iceproof Rainproof |
| Contact Form | DPST |
| Voltage Rating | 240 VAC |
| Finish | Hot Dipped Galvanized |
| Horsepower | 10 hp |
| Amperage Rating | 60 A |
| Number of Wires | 2 |
| Terminal Type | Lug |
| Brand | Square D Co |
