Smith 1070Y06
6" CAST IRON ROOF DRAIN
SKU
867515

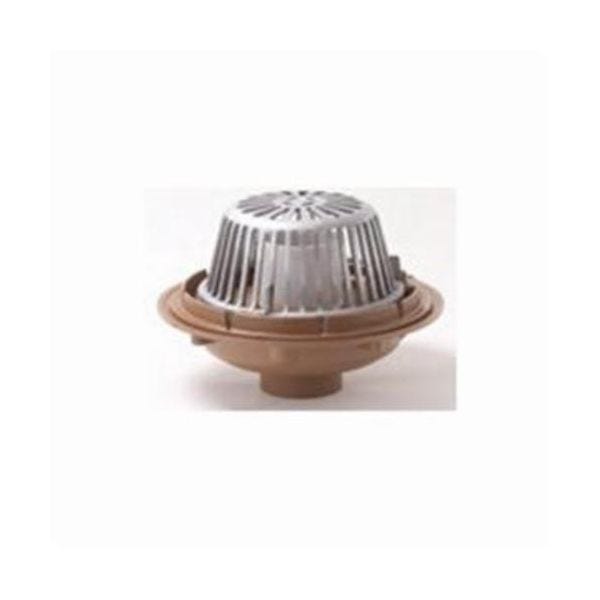

Smith® Overflow Drain, Standpipe, Series: 1070, 6 in Outlet, No-Hub Connection, Cast Iron Drain, 15-1/4 in Dia x 10-1/4 in H Dimensions
- 102.5 sq-in free area
- PVC standpipe
- Duco cast iron body, flashing clamp and gravel stop with polyethylene dome, and PVC. standpipe
- Note: stated flow rates for roof drains are based on particular test piping configurations and dimensions
- Installed roof drain flow rates cannot be stated unless the attached piping configuration is known and the effects of the drainage calculated
| Type | Standpipe |
|---|---|
| Dimensions | 15-1/4 in Dia x 10-1/4 in H |
| Outlet Size | 6 in |
| Drain Material | Cast Iron |
| Connection Type | No-Hub |
| Series | 1070 |
| Brand | J.R. Smith |
