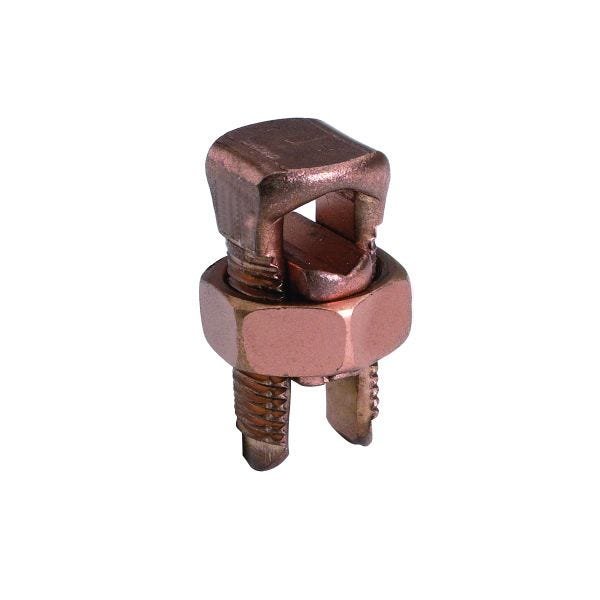

BURNDY® SERVIT® Split Bolt Connector, 1-Port Type KS Compact, Series: KS Series, 2 Conductors, 10 to 8, 14 to 8 AWG Conductor, Specifications: 1/2 in Cross Flat, 80 in-lb Installation Torque, Copper Alloy, Plated, 0.85 in L x 0.38 in W
- Split bolt has free running threads and easy to grip wrench flats
- Highly resistant to cracking and corrosion
- 165 in-lb installation torque
- 9 D AWG stranded to 20 AWG solid for copper welded run range
- 14 to 8 AWG solid conductor tap range
| Number of Conductors | 2 |
|---|---|
| Dimensions | 0.85 in L x 0.38 in W |
| Specifications | 1/2 in Cross Flat, 80 in-lb Installation Torque |
| Conductor Size | 10 to 8, 14 to 8 AWG |
| Series | KS Series |
| Material | Copper Alloy |
| Type | 1-Port Type KS Compact |
| Finish | Plated |
| Brand | Burndy LLC |
