LEGEND 105-508NL
LF 2"FIPT BRONZE Y-STRAINER
SKU
884342

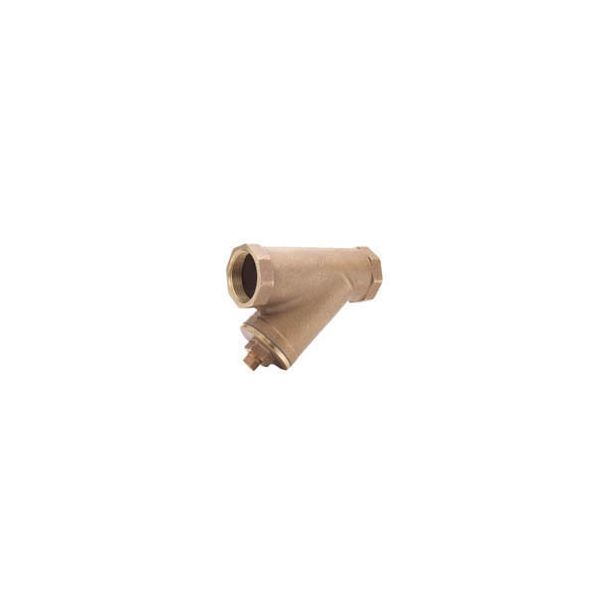

LEGEND Wye Strainer, Lead Free, Series: T-15NL, 2 in Nominal, 7-1/2 in Overall Length, FNPT, 1/2 in NPT Blow-Off, Cast Bronze Body, Commercial Grade, Import
- Lead free design is suitable for all California and Vermont potable water installations
- Heavy-duty, full-pattern bronze construction resists pipeline stresses and distortion
- Standardly equipped with a 304 stainless steel 20 mesh screen or 1/16 in hole diameter perforated strainer
- Square-head closure plug furnished
- Ideal for protecting downstream components, by trapping and holding debris
- Lead free cast bronze closure (blow-off) plug and cap, stainless steel screen or strainer, nitrilic bonded non-asbestos fiber cap gasket material
- Self-cleaning can be accomplished by opening the valve or plug connected to the blow-off outlet
| Nominal Size | 2 in |
|---|---|
| Blow-Off Size | 1/2 in NPT |
| Domestic/Import | Import |
| Body Material | Cast Bronze |
| Overall Length | 7-1/2 in |
| Series | T-15NL |
| Grade | Commercial |
| Connection Type | FNPT |
| Brand | Legend |
