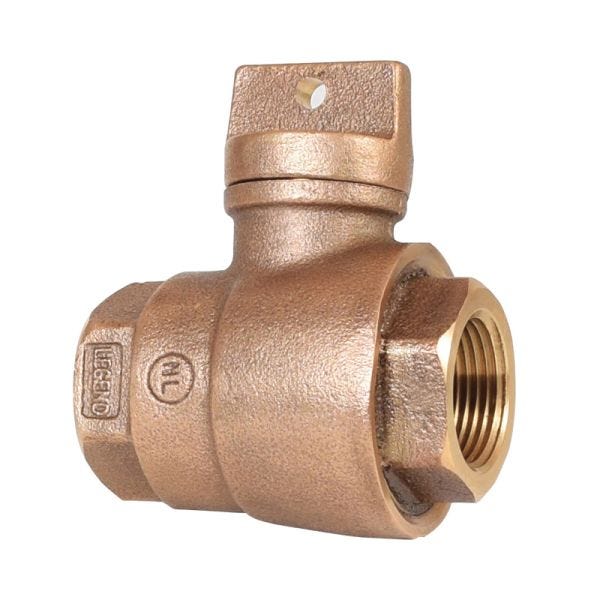

LEGEND 314-255NL
1" T-5500NL FIPXFIP CURB STOP
SKU
580997
LEGEND Curb Stop, Lead Free, Series: T-5500NL, 1 in Nominal, FNPT, 300 psi CWP, 100 deg F, Full Port, 3.41 in Inlet to Outlet Length, 2.78 in Top to Inlet Center, Cast Bronze Body, Cast Bronze Trim, Nitrile Rubber Seat, Import
- Lead-free design is suitable for all no lead potable water installations, in full compliance of the lead-free plumbing law
- 90 deg operation with enclosed operating head stops
- Operating head has been drilled to accept stationary rod cotter pin attachment
- Full-port, ball-and-seat design is superior to plug-type designs
- Durable, PTFE-coated ball assures positive, bubble-tight shutoff, low torque operation and long service life
- For underground water service installations only, to permit shutoff of the water supply, from the water main to the building
| Port Type | Full |
|---|---|
| Trim Material | Cast Bronze |
| Temperature Rating | 100 deg F |
| Inlet to Outlet Length | 3.41 in |
| End Style | FNPT |
| Body Material | Cast Bronze |
| Domestic/Import | Import |
| Nominal Size | 1 in |
| Pressure Rating | 300 psi CWP |
| Top to Inlet Center | 2.78 in |
| Softgoods Material | Nitrile Rubber Seat |
| Series | T-5500NL |
| Brand | Legend |
| Size | 1" |
| Type | Curb Stops |
