Liberty Pumps D3648LSG203
2HP SUPLEX GRIDER PKG
SKU
910476
Liberty Pumps®, D3648LSG203, Pre-Assembled, Series: D3648LSG, 50 gpm Maximum, 10 ft Rated Head, 210 gal Basin, 4 in Hub Inlet, 1-1/4 in NPT Outlet, 110 ft Maximum Head, 2 hp, 208/230 VAC, 10.6 A Full Load/61 A Locked Rotor, 60 Hz Frequency, 3 ph, 3450 rpm Motor, 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, Guide Rail System Mounting, 275 deg F Thermal Overload, NEMA 4X Enclosure, Upper Radial/Lower Thrust Bearing, Fiberglass

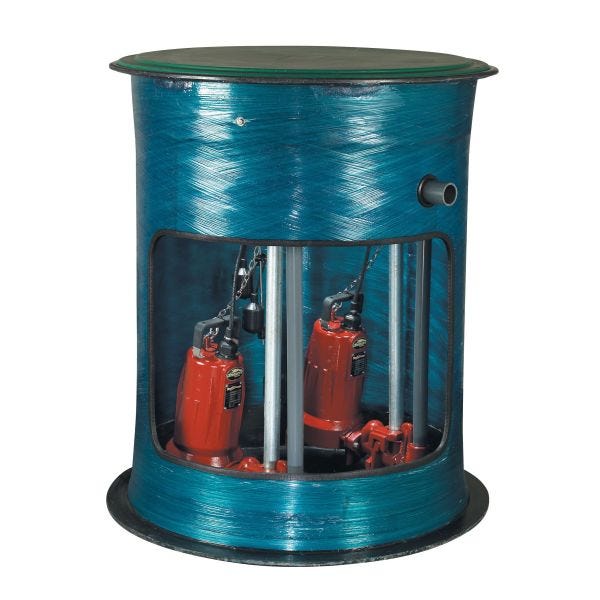

- Factory assembled 2 hp grinder pump 36 in diameter system
- 4 in Fiberglass hub with 4 in rubber pipe seal
- Factory pre-assembled guide rail system
- All stainless steel supports and brackets pre-mounted
- Stainless steel chain for pump lift out
- 12 in discharge depth
- Solid standard green fiberglass cover
- Single-stage submersible pump
- 2 in SCH 80/XH discharge pipe
| Material | Fiberglass |
|---|---|
| Service Factor | 1 |
| Outlet Size | 1-1/4 in NPT |
| Cord Type | 25 ft |
| Motor Speed | 3450 rpm |
| Series | D3648LSG |
| Bearing Type | Upper Radial/Lower Thrust |
| Enclosure Type | NEMA 4X |
| Basin Capacity | 210 gal |
| Inlet Size | 4 in Hub |
| Mounting Type | Guide Rail System |
| Rated Head | 10 ft |
| Frequency Rating | 60 Hz |
| Type | Pre-Assembled |
| Horsepower | 2 hp |
| Maximum Flow Rate | 50 gpm |
| Maximum Head | 110 ft |
| Impeller Type | 300 Stainless Steel |
| Temperature Rating | 275 deg F Thermal Overload |
| Amperage Rating | 10.6 A Full Load/61 A Locked Rotor |
| Voltage Rating | 208/230 VAC |
| Phase | 3 ph |
| Brand | Liberty Pumps |
