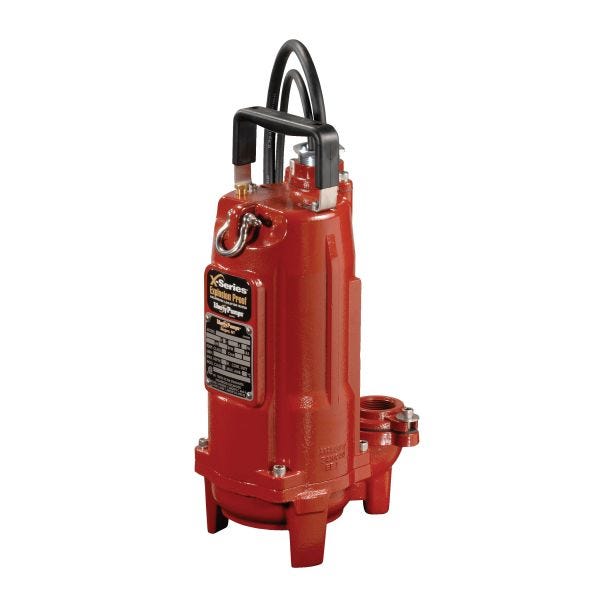

Liberty Pumps XFL53M-2
EXPL PROOF PUMP 50' CORD
SKU
896262
Liberty Pumps®, XFL53M-2, Mid-Range Head, Series: XFL50, 104 gpm Maximum, 5 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/2 in, 2 in NPT Outlet, 38 ft Maximum Head, 1/2 hp, 208 to 230 VAC, 4.5 A Full Load/33.5 A Locked Rotor, 60 Hz Frequency, 3 ph, 3450 rpm Motor, SOOW 25 ft Cord, Cast Iron 7-Vane Semi-Open Impeller, 221 deg F Thermal Overload, NEMA 1/4X Enclosure, Ball/Race Bearing, Cast Iron, 11.2 in W x 7.4 in D x 20.1 in H Dimensions
- Heavy cast iron construction
- Dual shaft seals with seal fail sensor
- 416 stainless steel rotor shaft
- 25 ft quick connect power cord
- For use with ISS/ISD Series intrinsically safe panels
- 3/4 in solid handling
- 104 deg F maximum fluid temperature
- Ball bearings upper and lower
- 1-1/2 in threads at power cords for optional conduit connection
| Motor Speed | 3450 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Non-Automatic |
| Enclosure Type | NEMA 1/4X |
| Maximum Flow Rate | 104 gpm |
| Type | Mid-Range Head |
| Rated Head | 5 ft |
| Cord Type | SOOW 25 ft |
| Temperature Rating | 221 deg F Thermal Overload |
| Amperage Rating | 4.5 A Full Load/33.5 A Locked Rotor |
| Outlet Size | 1-1/2 in, 2 in NPT |
| Phase | 3 ph |
| Bearing Type | Ball/Race |
| Maximum Head | 38 ft |
| Dimensions | 11.2 in W x 7.4 in D x 20.1 in H |
| Impeller Type | Cast Iron 7-Vane Semi-Open |
| Series | XFL50 |
| Material | Cast Iron |
| Horsepower | 1/2 hp |
| Brand | Liberty Pumps |
