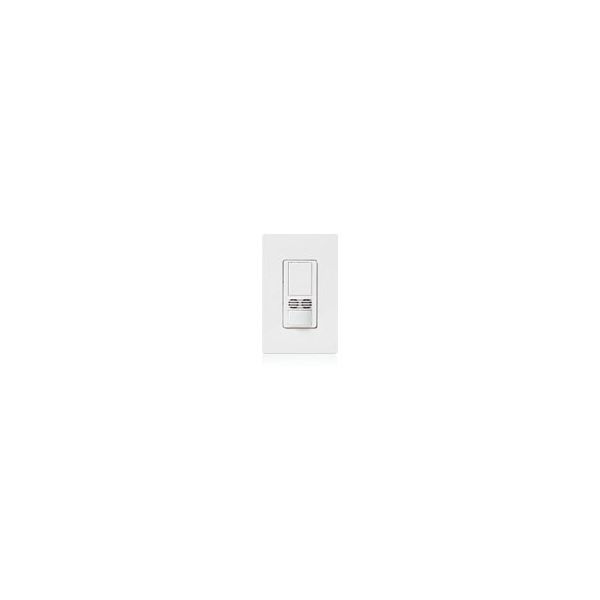

Maestro MS-B102-WH
SENSOR SWITCH WHITE
SKU
892223
Maestro® Dual Technology Sensor Switch, Single-Circuit, 120 to 277 VAC, 6 A Lighting/4.4 A Fan, Occupancy Sensor, 400 to 900 sq-ft Coverage, 180 deg Viewing, 1/5/15/30 min Time Delay, CFL/Fluorescent/Halogen/Incandescent/LED Lamp, 50/60 Hz Response, Wall Box Mounting, 32 to 104 deg F, White, 4-11/16 in H x 2-15/16 in W x 5/16 in D Dimensions
- The single-circuit versions can be used to meet many of the title 20/24, ASHRAE 90.1 and IECC code requirements such as inautomatic shutoff in
- XCT™ technology for major, minor, fine, and very fine motion detection
- Tamper-resistant PIR lens
- Up to 900 sq-ft major and 400 sq-ft minor motion coverage
- Occupancy models can be set to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF per circuit
- 6 A of lighting load per circuit at 120 to 277 VAC, 4.4 A (1/6 HP) of fan load per circuit at 120 VAC
- Sensitivity adjustment: PIR (Hi, Med, Low, Min), Ultrasonic (Hi, Med, Low, Off)
- Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
- Smart Ambient Light Detection (ALD) and Fixed Ambient Light Detection
- Adaptive zero-cross switching algorithm for extended relay life
- Product ground current does not exceed 0.5 mA
- 0 to 90% humidity, non-condensing, indoor use only
- Single pole, multilocation/3-way
| Sensor Type | Occupancy |
|---|---|
| Lamp Type | CFL/Fluorescent/Halogen/Incandescent/LED |
| Dimensions | 4-11/16 in H x 2-15/16 in W x 5/16 in D |
| Coverage | 400 to 900 sq-ft |
| Voltage Rating | 120 to 277 VAC |
| Temperature Rating | 32 to 104 deg F |
| Color | White |
| Response Frequency | 50/60 Hz |
| Type | Single-Circuit |
| Viewing Angle | 180 deg |
| Time Delay | 1/5/15/30 min |
| Amperage Rating | 6 A Lighting/4.4 A Fan |
| Mounting Type | Wall Box |
| Brand | Lutron |
| Color | white |
