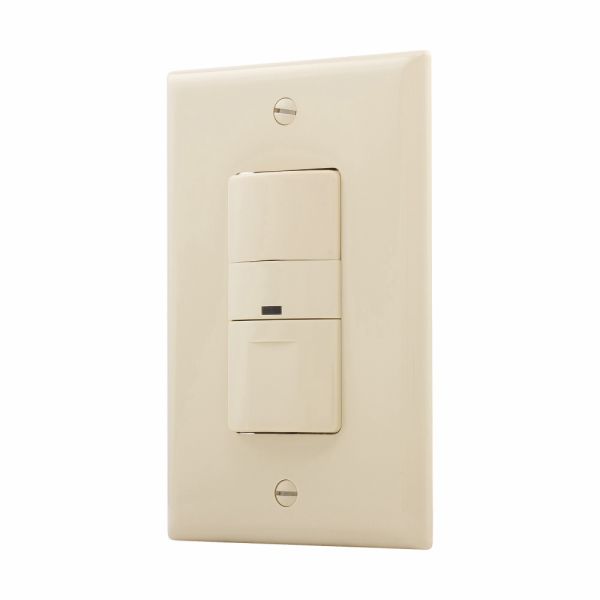

EATON OS306U-V
IVORY WALL MOUNT SENSOR
SKU
788328
EATON Occupancy Motion Sensor Switch, 1-Pole 1-Phase Passive Infrared, Series: OS306U, 120 VAC, 5 A, 600 W Power, 450 sq-ft Coverage, 180 deg Viewing, 30 min Time Delay, Incandescent/Halogen Lamp, 60 Hz Response, Wire Lead Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, Wall Mounting, 0 to 40 deg C, Polycarbonate, Ivory, 2.6 in H x 1.55 in W x 1.85 in D Dimensions
- Convenient installation and test mode for set-up
- Adjustable, built-in light level sensor
- Selectable time delay
- For use with incandescent lamps, halogen fixtures, electronic and magnetic fluorescent, CFL, LED electrical motor loads
- Three-way wiring
- Manual OFF pushbutton
- Color matched, reinforced lens is tamper-resistant
- Occupancy switch provides automatic ON/automatic OFF (OS306U)
- No neutral required
- Vacancy switch provides manual ON/automatic OFF (VS306U)
- Adjustable 5/15/30 min test time delay
| Series | OS306U |
|---|---|
| Response Frequency | 60 Hz |
| Lamp Type | Incandescent/Halogen |
| Temperature Rating | 0 to 40 deg C |
| Type | 1-Pole 1-Phase Passive Infrared |
| Mounting Type | Wall |
| Connection Type | Wire Lead |
| Material | Polycarbonate |
| Power Rating | 600 W |
| Viewing Angle | 180 deg |
| Dimensions | 2.6 in H x 1.55 in W x 1.85 in D |
| Coverage | 450 sq-ft |
| Voltage Rating | 120 VAC |
| Control Output | Manual On/Automatic Off/Automatic On/Automatic Off |
| Amperage Rating | 5 A |
| Color | Ivory |
| Time Delay | 30 min |
| Brand | Cooper Wiring Devices |
