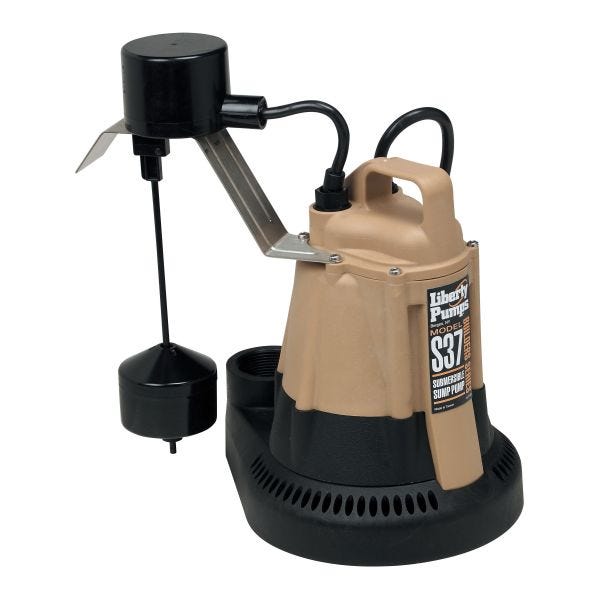

Liberty Pumps S37
S37 1/3HP VERT.FLOAT SUMP PUMP
SKU
380388
Liberty Pumps®, S37, Automatic, Series: S30 Builders, 45 gpm Flow Rate, 1-1/2 in NPT Outlet, 25 ft Maximum Head, 1/3 hp, 115 VAC, 6.5 A, 60 Hz Frequency, 3450 rpm Motor, 10 ft Cord, Vortex Impeller, 140 deg F, Ball Bearing, Aluminum/Poly, 9-3/4 in L x 9-3/4 in W x 13 in H Dimensions
- Quiet running heavy duty 1/3 hp motor
- Dual ball - bearings
- Cast iron motor plate
- High suction ports to reduce potential jamming
- High capacity flow rates
- Integrally wired
- Stainless steel rotor shaft
- 1/4 in solid handling with higher intake screening helps reduce debris from entering the pump compared to bottom suction designs
- Oil filled, thermally protected motor
- Bi-directional dual lip shaft seal
- Thermoplastic vortex style impeller with improved clearances for better debris handling
- Water directed flow in cast motor plate allows for improved cooling of motor
- Stainless steel fasteners
- 12 in turn-on level and 3.5 in turn-off level
- Vertical float
| Amperage Rating | 6.5 A |
|---|---|
| Frequency Rating | 60 Hz |
| Motor Speed | 3450 rpm |
| Temperature Rating | 140 deg F |
| Horsepower | 1/3 hp |
| Dimensions | 9-3/4 in L x 9-3/4 in W x 13 in H |
| Cord Type | 10 ft |
| Type | Automatic |
| Impeller Type | Vortex |
| Series | S30 Builders |
| Flow Rate | 45 gpm |
| Voltage Rating | 115 VAC |
| Bearing Type | Ball |
| Maximum Head | 25 ft |
| Outlet Size | 1-1/2 in NPT |
| Material | Aluminum/Poly |
| Brand | Liberty Pumps |
