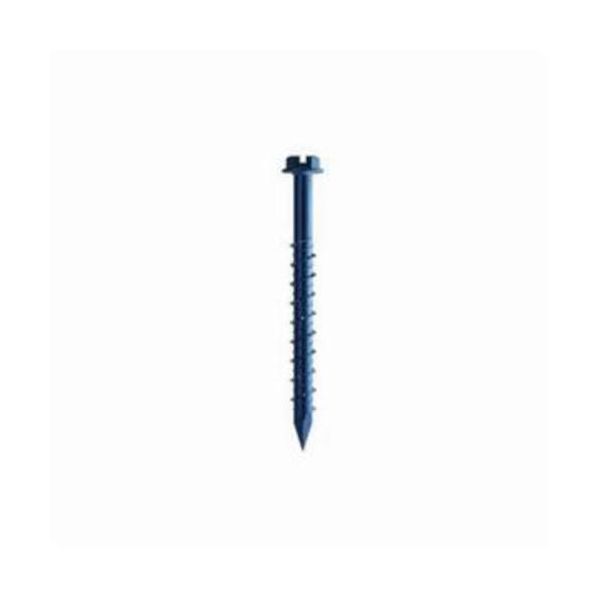

Simpson Strong-Tie TTN18214H
3/16"X21/4"HEX TAPCON
SKU
549879
Simpson Strong-Tie® Screw Anchor, Series: Titen®, 3/16 in Diameter, 2-1/4 in Overall Length, Hex Head Drive, Carbon Steel, 1 in Minimum Embedment Depth, 5/32 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 205 lb Shear Strength, 110 lb Tensile Strength
- Blue color
- 1016 lb ultimate shear load
- 542 lb ultimate tension load
- 1-1/8 in critical edge distance
- 2-1/4 in critical spacing
- Zinc plated with a baked on ceramic
| Diameter | 3/16 in |
|---|---|
| Overall Length | 2-1/4 in |
| Applicable Materials | Concrete/Masonry |
| Tensile Strength | 110 lb |
| Shear Strength | 205 lb |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Minimum Embedment Depth | 1 in |
| Series | Titen® |
| Drill Size | 5/32 in |
| Head Drive Type | Hex |
| Brand | Simpson Strong-Tie |
