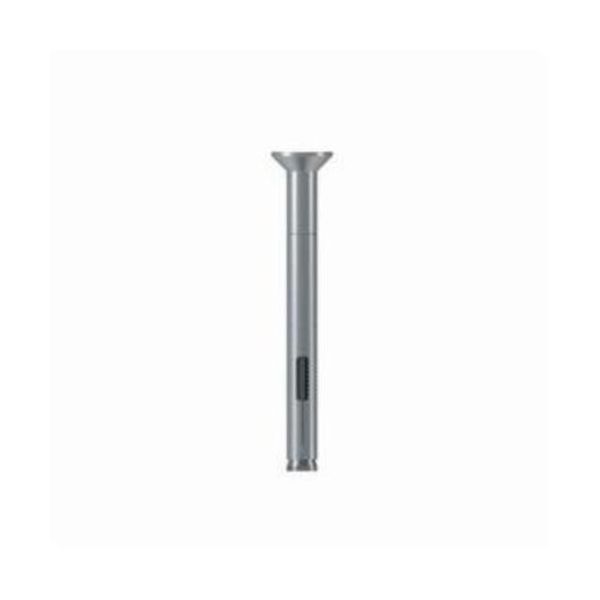

Simpson Strong-Tie SL37400PF
3/8X4 HEX SLEEVE ANCHOR
SKU
694432
Simpson Strong-Tie® Sleeve Anchor, Pre-Assembled Expanding, Series: Sleeve-All®, 3/8 in Diameter, 5/16-18 Thread, Carbon Steel, Flat/Phillips® Head, Zinc Plated, 1-1/2 in Minimum Embedment Depth, 4 in Overall Length, 3/8 in Drill, 770 lb at 2000 psi Shear Strength, 400 lb at 2000 psi Tensile Strength
- 2-1/2 in THK maximum fixture
- Material meets minimum 50000 psi tensile anchor body
- SAE J403, grade 1008 cold rolled steel sleeve
- Commercial grade nut, meets requirements of ASTM A563 grade A
- SAE J403, grade 1008/1010 cold rolled steel washer
- 3-3/4 in critical edge distance
- 6 in critical spacing distance
- 1600 lb at 2000 psi ultimate tension load for concrete
- 2680 lb at 4000 psi ultimate tension load for concrete
- 3080 lb at 2000 psi ultimate shear load for concrete
- 15 ft-lb install torque
- 670 lb at 4000 psi for concrete
| Series | Sleeve-All® |
|---|---|
| Material | Carbon Steel |
| Head Type | Flat Phillips® |
| Tensile Strength | 400 lb at 2000 psi |
| Thread Size | 5/16-18 |
| Diameter | 3/8 in |
| Type | Pre-Assembled Expanding |
| Overall Length | 4 in |
| Finish | Zinc Plated |
| Shear Strength | 770 lb at 2000 psi |
| Minimum Embedment Depth | 1-1/2 in |
| Drill Size | 3/8 in |
| Type | Pre-Assembled Expanding |
| Head Type | Flat Phillips® |
| Brand | Simpson Strong-Tie |
