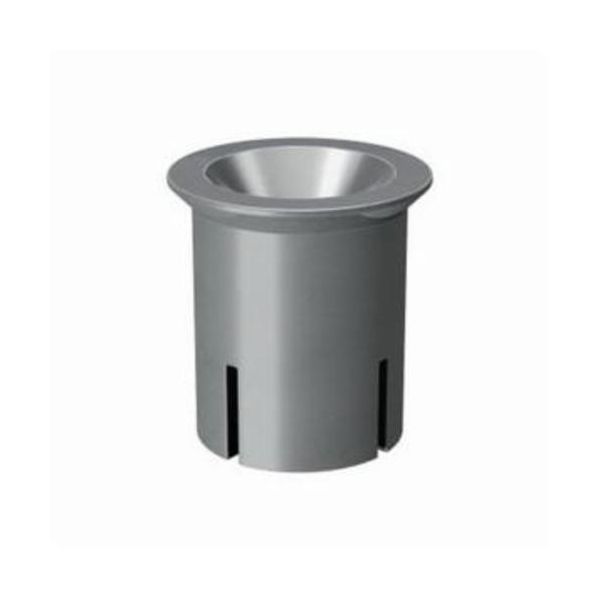

Simpson Strong-Tie DIA37S
3/8"SHORT DROP-IN
SKU
565849
Simpson Strong-Tie® Drop-In Anchor, Short Threaded, 3/8 in Bolt/Rod, 3/8-16, Carbon Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, 1/4 in Thread Length, UNC, 3/4 in Overall Length, 410 at 3000 psi for Concrete Shear Strength, 335 lb at 3000 psi for Concrete Tensile, Zinc Plated
- Lipped edge (DIAS) eliminates need for precisely drilled hole depth
- Available in coil-thread version for 1/2 in and 3/4 in coil-threaded rod
- Short length (DIAS) enables shallow embedment to help avoid drilling into rebar or pre-stressed/post-tensioned cables
- Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation
- Anchor body meets minimum 70000 psi tensile
- Expander plug meets minimum 50000 psi tensile strength
- A dedicated setting tool is included
- 2600 to 2700 deg F freezing/melting point
- The allowable loads are based on a safety factor of 4
- Allowable loads may not be increased for short-term loading due to wind or seismic forces
- Anchors were installed with a 1 in offset from the centerline of the flute
| Thread Size | 3/8-16 |
|---|---|
| Type | Short Threaded |
| Overall Length | 3/4 in |
| Thread Type | UNC |
| Tensile Strength | 335 lb at 3000 psi for Concrete |
| Shear Strength | 410 at 3000 psi for Concrete |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Thread Length | 1/4 in |
| Minimum Embedment Depth | 1-9/16 in |
| Drill Size | 1/2 in |
| Bolt/Rod Size | 3/8 in |
| Brand | Simpson Strong-Tie |
