Simpson Strong-Tie WA50812

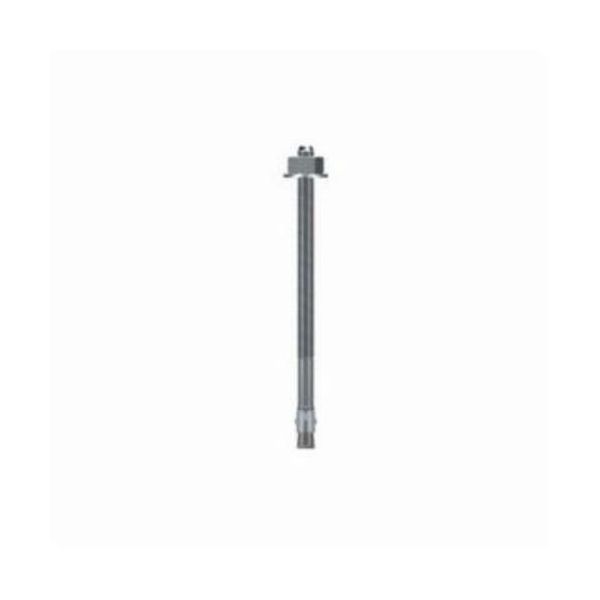

Simpson Strong-Tie® Wedge Anchor, Series: Wedge-All®, 1/2 in Dia, 8-1/2 in Overall Length, 6 in Thread Length, Carbon Steel, Zinc Plated, 2-1/4 in Minimum Embedment Depth, 1/2 in Drill, 3/4 in Head, 850 lb Shear Strength, 871 lb Tensile

• Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
• One-piece, wrap-around clip ensures uniform holding capacity
• Threaded end is chamfered for ease of starting nut
• Available in a wide range of diameters and lengths
• Carbon steel ASTM A563 grade A nut
• The minimum concrete thickness is 1-1/2 times the embedment depth
• The allowable loads are based on a safety factor of 4
• 9/16 in minimum fixture hole
• 60 ft-lb installation torque
• 3280 lb at 2000 psi/5280 lb at 4000 psi ultimate tension loads and 820 lb at 2000 psi, 1360 lb at 4000 allowable tension loads for concrete
• 6560 lb at 2000 psi ultimate and 1345 lb at 2000 psi, 1485 lb at 3000 psi, 1625 lb at 4000 psi allowable shear loads for concrete
• Anchor body material meets minimum 70000 psi tensile strength
