U.S. Tsubaki Power Transmission SHR
FUSE HOLDER
SKU
706487

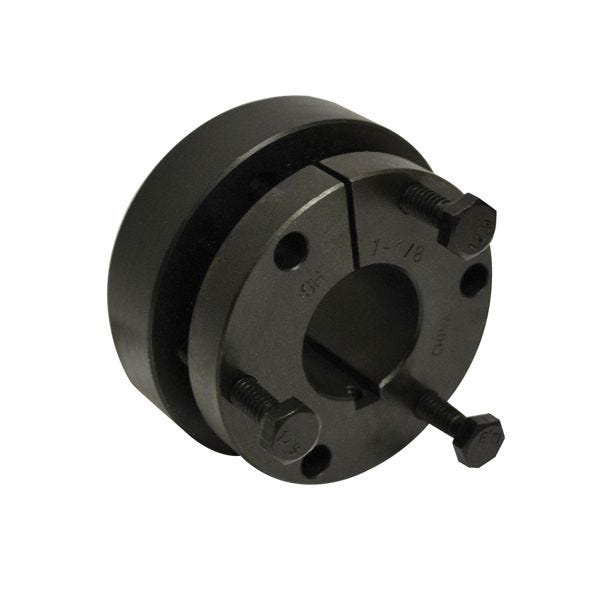

Tsubaki® QD® Bushing, Type SH, 15/16 in Bore Dia, 1-7/8 in Barrel Dia, 2-1/4 in Bolt Circle, 2-5/8 in Flange Dia, 7/16 in Flange Thickness, 3 Bolt Holes, 1/4 x 1-3/8 in Screw, 3500 in-lb, For Use With: Sprockets 101, 1-5/16 in Overall Length, 1/4 in W x 1/8 in H Keyway
- Standard keyway in hub
| Torque Rating | 3500 in-lb |
|---|---|
| Flange Thickness | 7/16 in |
| Suitable For Use With | Sprockets 101 |
| Number of Bolt Holes | 3 |
| Overall Length | 1-5/16 in |
| Screw Size | 1/4 x 1-3/8 in |
| Bore Diameter | 15/16 in |
| Type | Type SH |
| Keyway Size | 1/4 in W x 1/8 in H |
| Flange Diameter | 2-5/8 in |
| Bolt Circle Diameter | 2-1/4 in |
| Barrel Diameter | 1-7/8 in |
| Brand | Merson Fuses |
