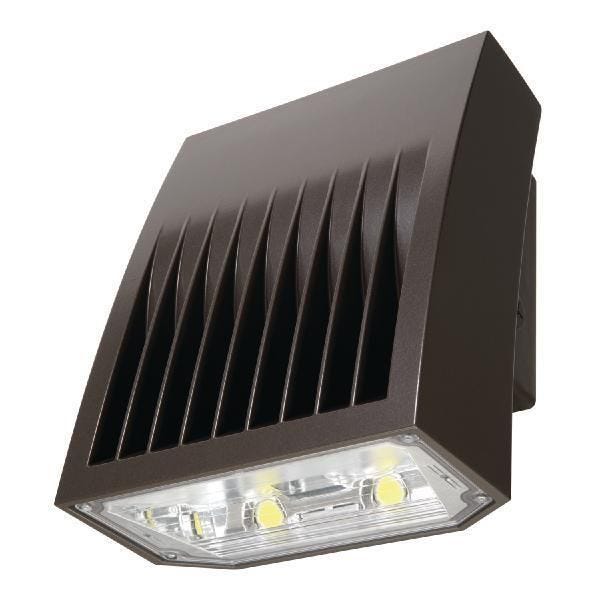

Lumark, XTOR8B, Outdoor Wallpack, Series: XTOR, 120/277 VAC, 81 W Fixture, 0.31/0.35/0.39/0.71 A, 1 Lamps, 72000 hr Average Life, Bright White Light, 5000 K Color Temperature, 70 CRI, Integral LED Electronic Ballast, Full Cut-Off Lens, 8502 Lumens, IP66 Enclosure, Surface Mounting, Die Cast Aluminum Housing Material, Carbon Bronze Housing Finish, 6-1/2 in L x 9-1/4 in W x 12-1/2 in H Dimensions
- Energy and maintenance savings up to 95% compared to HID
- Emergency egress battery pack
- Wall, inverted or pole mount
- 0.71 A at 120 V and 0.31 A at 277 V amperage rating
- Energy efficient illumination results in up to 144 Lumens/W
- Hook-N-Lock mechanism for quick, easy installations
- Standard 0 to 10 VDC dimming
- Integrated stand alone or wireless controls for additional savings
- Energy-saving replacement up to 250 W HID
- Patented heavy duty construction, maximum LED performance
- Die cast aluminum, low profile design with hinged removable door
- Sealed LED optical chamber with 4000 K and 5000 K (CCT)
| Series | XTOR |
|---|---|
| Lens Type | Full Cut-Off |
| Fixture Wattage | 81 W |
| Color Rendering Index (CRI) | 70 |
| Light Color | Bright White |
| Number of Lamps | 1 |
| Ballast Type | Integral LED Electronic |
| Housing Finish | Carbon Bronze |
| Amperage Rating | 0.31/0.35/0.39/0.71 A |
| Enclosure Type | IP66 |
| Dimensions | 6-1/2 in L x 9-1/4 in W x 12-1/2 in H |
| Housing Material | Die Cast Aluminum |
| Mounting Type | Surface |
| Lamp Type | LED |
| Voltage Rating | 120/277 VAC |
| Lumens | 8502 Lumens |
| Color Temperature | 5000 K |
| Average Life | 72000 hr |
| Brand | Cooper Wiring Devices |
| Category | Wallpacks |
