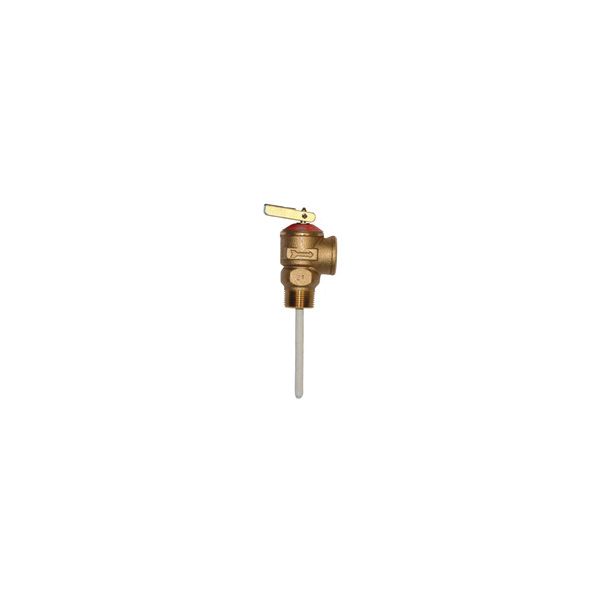

Zurn Wilkins TP1100A-2C-150C
3/4 150 PSI T&P RELIEF
SKU
427577
Zurn® Wilkins Temperature and Pressure Relief Valve, Series: TP1100A, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, 2 in Probe Length, Media: Water, 1-5/8 in Top to Inlet Center, Cast Brass/Bronze Body, Stainless Steel Spring Trim, 4-13/16 in H
- Thermal element protected
| Trim Material | Stainless Steel Spring |
|---|---|
| Nominal Size | 3/4 in |
| Top to Inlet Center | 1-5/8 in |
| Probe Length | 2 in |
| Series | TP1100A |
| Body Material | Cast Brass/Bronze |
| Temperature Rating | 210 deg F |
| Media | Water |
| Pressure Rating | 150 psi |
| Dimensions | 4-13/16 in H |
| End Style | MNPT x FNPT |
| Brand | Wilkins |
