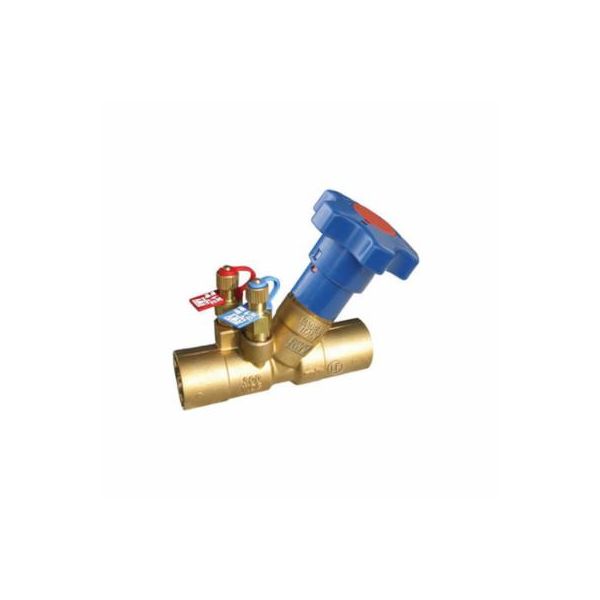

RWV 9519AB 3/4

LF 3/4" CXC CIRCUIT SETTER
SKU
598066
The product cannot be delivered by Truck Shipping

RWV® Hydronic Balancing Valve, Series: 9519AB, 3/4 in Nominal, Solder, 300 lb WOG, 15 to 260 deg F, 5.15 gpm, Media: Water, Adjustable Handwheel Actuator, DZR Brass Body, DZR Brass Trim, PTFE Disc Gasket/EPDM Perox Disc O-Ring, 4.18 in L, Import

  • Fixed orifice design
  • Integral memory stop
  • Low lead DZR brass fixed orifice double regulating globe valve
  • Positive shut-off with memory stop
  • Intended for HVAC and domestic water use
  • Tolerance on nominal CVS +/-3% (test according to BS7350)
More Information
Trim Material DZR Brass
Nominal Size 3/4 in
Actuator Type Adjustable Handwheel
Series 9519AB
Body Material DZR Brass
Softgoods Material PTFE Disc Gasket/EPDM Perox Disc O-Ring
Temperature Rating 15 to 260 deg F
Media Water
Flow Rate 5.15 gpm
Domestic/Import Import
Pressure Class 300 lb WOG
Dimensions 4.18 in L
End Style Solder
Brand Red & White Valve
