Red-White Valve 5084AB 1/4

LF 1/4F X 1/4F 150# MINI BV
SKU
620819
The product cannot be delivered by Truck Shipping

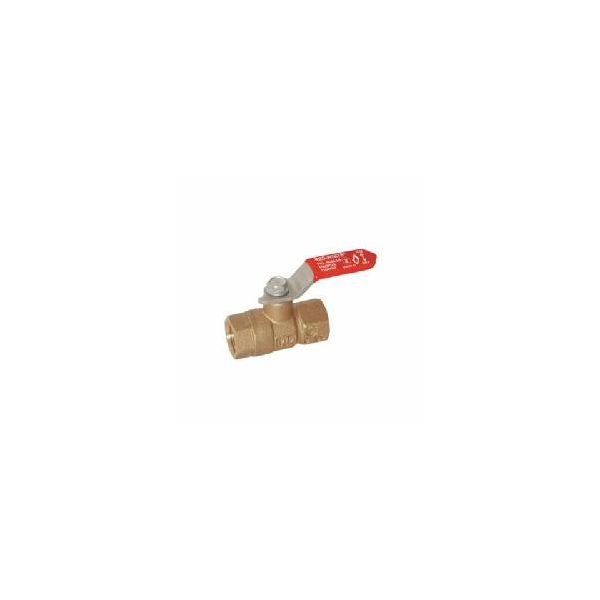

RWV® Mini Ball Valve, Lead Free 2-Piece, Series: 5084AB, 1/4 in Nominal, FNPT, 600 lb WOG/150 lb WSP, 15 to 160 deg F, Full Port, 0.31 in Orifice, Chrome Plated Low Lead Brass Ball, 1.57 in Inlet to Outlet Length, 1.09 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, FPM Softgoods

  • Blow-out proof stem
  • Fpm O-ring/packing
More Information
Softgoods Material FPM
Port Type Full
End Style FNPT
Ball Material Chrome Plated Low Lead Brass
Inlet to Outlet Length 1.57 in
Top to Inlet Center 1.09 in
Type 2-Piece
Pressure Rating 600 lb WOG/150 lb WSP
Orifice Size 0.31 in
Body Material Brass
Nominal Size 1/4 in
Temperature Rating 15 to 160 deg F
Series 5084AB
Trim Material Low Lead Brass Stem and PTFE Seat
Brand Red & White Valve
Type Ball Valve
Size 1/4"
