Sioux Chief 696RG1000CF
LF FIRE RATED CPVC ICE BOX
SKU
606834

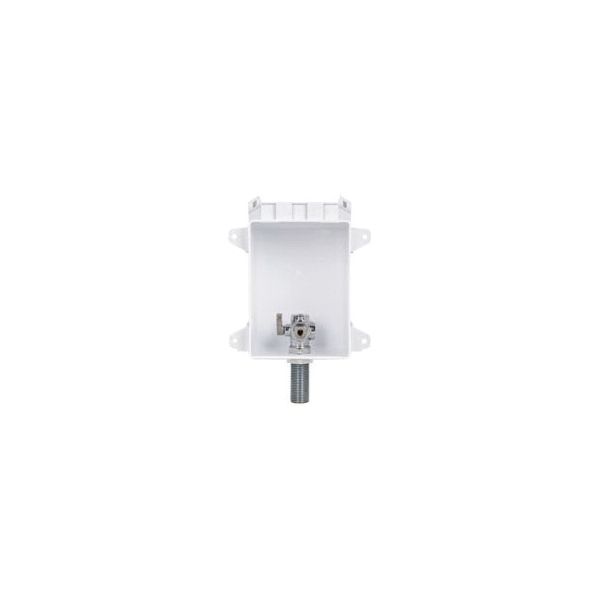

Sioux Chief OxBox™ Ice Maker Outlet Box, Fire-Rated, Series: 696R, 1/2 in Inlet, CPVC Male Inlet, 250 psig, 250 deg F, ABS, 5-3/4 in W x 7-1/4 in H, Domestic
- Boxes mount securely to stud or over studs
- Box mounts easily to stud for top or bottom supply
- High quality quarter-turn ball valves with 1/4 in OD compression outlet connection
- Fire-rated ABS frame, fire-rated abs frame extension, galvanized steel bracket
- 100 psi max testing air pressure
| Material | ABS |
|---|---|
| Inlet Type | CPVC Male |
| Pressure Rating | 250 psig |
| Inlet Size | 1/2 in |
| Temperature Rating | 250 deg F |
| Type | Fire-Rated |
| Dimensions | 5-3/4 in W x 7-1/4 in H |
| Domestic/Import | Domestic |
| Series | 696R |
| Brand | Sioux Chief |
| Type | Ice Maker Box |
