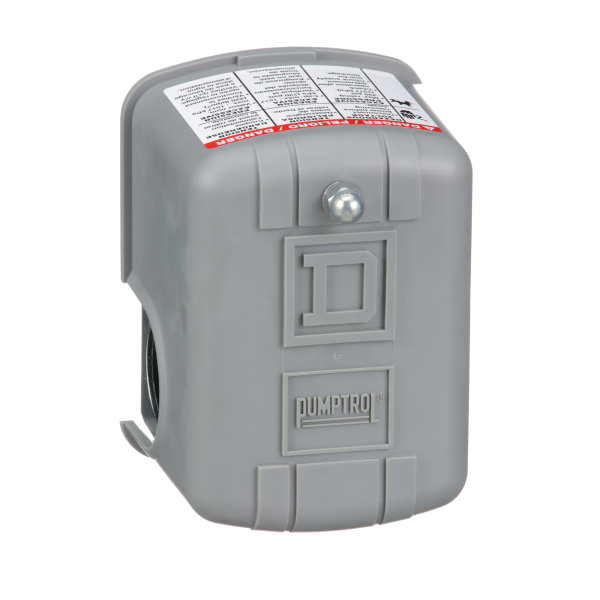

Square D 9013FSG2J24
SQ D 40/60 PRESSURE SWITCH
SKU
287910
Square D™ Pumptrol® Pressure Switch, Adjustable Electro-Mechanical, Series: 9013FS, 10 to 45 psig Pressure, 15 to 30 psi Differential, 220 psi Maximum, 2NC/DPST Contact Configuration, 1 hp at 575 VAC Contact, 300000 cycles Operating Cycles, -33 to 257 deg F, Screw Clamp Connection, Nitrile Diaphragm, Thermoplastic Housing Material, NEMA 1/IP20 Enclosure, 2.78 in W x 3.76 in D x 2.8 in H Dimensions
- The type FSG standard water pump switch is suitable for all types of pumps, including jets, submersible and reciprocating
- Diaphragm actuated
- 2NC, snap action, DPST-DB, form YY contact
- -22 to 257 deg F fresh water controlled fluid
- 1/4 in NPSF internal fluid connection
- Regulation between 2 thresholds, adjustable differential scale
- Four-terminal block
- 10 AWG clamping capacity electrical connection
- Nitrile (Buna-N) diaphragm
- 300000 cycles mechanical durability, 100000 cycles at 10 cycles/min electrical durability
- Zinc plated steel or equivalent flange
- General purpose (indoor) environmental conditions
- Bracket mounting
- (2) 0.88 in cable entries with 0.84 in across flats
- Noryl thermoplastic resin
- 220 psig system pressure
| Pressure Rating | 10 to 45 psig |
|---|---|
| Series | 9013FS |
| Connection Type | Screw Clamp |
| Diaphragm Material | Nitrile |
| Contact Rating | 1 hp at 575 VAC |
| Operating Cycles | 300000 cycles |
| Type | Adjustable Electro-Mechanical |
| Temperature Rating | -33 to 257 deg F |
| Dimensions | 2.78 in W x 3.76 in D x 2.8 in H |
| Differential | 15 to 30 psi |
| Contact Configuration | 2NC/DPST |
| Housing Material | Thermoplastic |
| Maximum Pressure | 220 psi |
| Enclosure Type | NEMA 1/IP20 |
| Brand | Square D Co |
