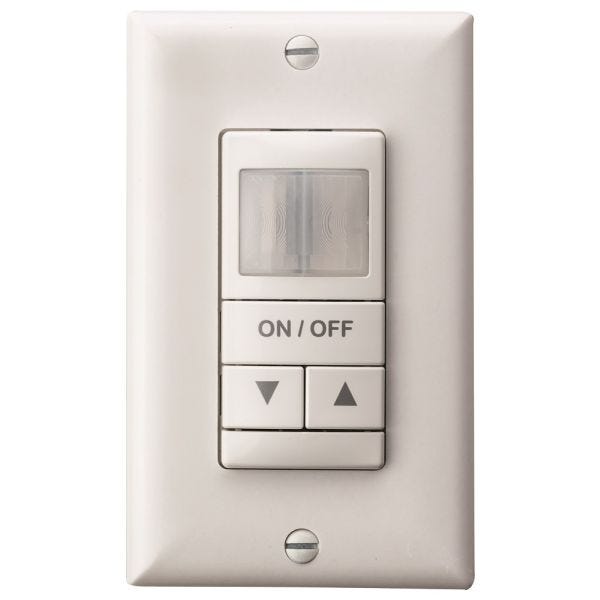

Sensor Switch WSX D WH
WHITE DIMMING WALL SWITCH
SKU
766763
Sensor Switch™, WSX D WH, Wall Switch Sensor, Series: WSX, 120 to 277 VAC, 1/4 hp Power, Passive Infrared Sensor, 20 ft Coverage, 180 deg Viewing, Fluorescent/Incandescent/LED Lamp, 50/60 Hz Response, Wired Connection, Automatic On Control Output, Wall Mounting, 14 to 122 deg F, Plastic, White, 2.74 in H x 1.68 in W x 1.63 in D Dimensions
- Compatible with LEDs, electronic and magnetic ballasts, CFLs and incandescents
- Vandal resistant lens
- Rectangular shape
- Gloss finish
- Occupancy controlled dimming operation
- 0 to 10 VDC dimming level
- 100% passive detection, no potential for interference with others buildings systems
- Small motions detection to 20 ft
- Pushbuttons programmable without removing cover plate adjustable times delays and operating modes
- Self grounding mounting strap
- Device accommodates powering over ground or neutral connections (patent pending)
- Line power and loads wires are interchangeable impossible to wires backwards(patented)
- Integrated photocell (disabled by default) prevents lights from turning on if sufficient daylight is present - not available in nightlight versions
- Dual technology (PDT) utilizes PIR/Microphonics™ detection (patented)
- Fully meets NEC 2011 section 404.2C neutral requirements no current leakage to ground when connected to neutral
| Sensor Type | Passive Infrared |
|---|---|
| Lamp Type | Fluorescent/Incandescent/LED |
| Dimensions | 2.74 in H x 1.68 in W x 1.63 in D |
| Coverage | 20 ft |
| Power Rating | 1/4 hp |
| Voltage Rating | 120 to 277 VAC |
| Series | WSX |
| Temperature Rating | 14 to 122 deg F |
| Color | White |
| Response Frequency | 50/60 Hz |
| Control Output | Automatic On |
| Type | Wallstation |
| Viewing Angle | 180 deg |
| Material | Plastic |
| Connection Type | Wired |
| Mounting Type | Wall |
| Brand | Lithonia Lighting |
| Color | white |
