Sloan 3914817
ROYAL 952-1.6 HYDROLIC FL VLV
SKU
265302

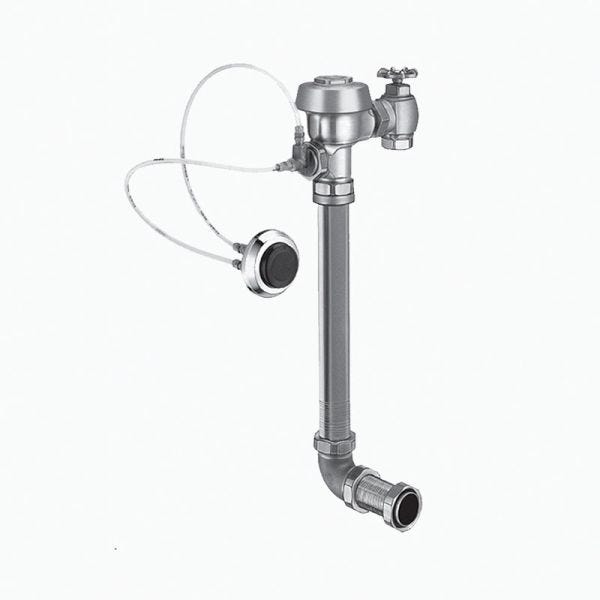

Sloan®, 3914817, Manual Concealed Flushometer, Single-Flush, Series: 952, Water Closet Fixture, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 24 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Handle, Semi-Red Brass, Domestic
- Various types of push-button flush actuators, which can be remotely positioned
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open actuator, vandal-resistant stop cap to facilitate security
- Vandal-resistant stop cap to facilitate security
- PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
| Flush Rate | 1.6 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Connection Location | Top Spud |
| Series | 952 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open |
| Rough-In Size | 24 in |
| Fixture Type | Water Closet |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Rough Brass |
| Brand | Sloan |
