Leviton TBR20-W
20A 125V NEMA 5-20R TR DPLX WH
SKU
756082

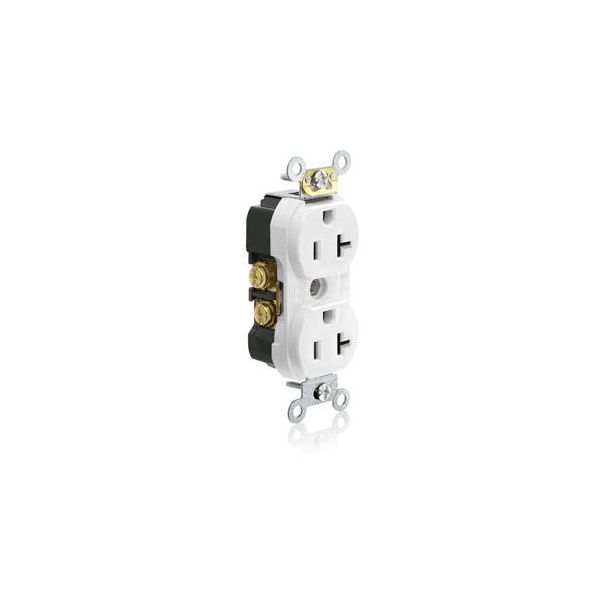

Leviton®, TBR20-W, Straight Blade Receptacle, Duplex Tamper Resistant, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 1.56 in L x 19 in W x 46 in H Dimensions
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
| Dimensions | 1.56 in L x 19 in W x 46 in H |
|---|---|
| Amperage Rating | 20 A |
| Color | White |
| Grade | Commercial |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Nylon |
| Temperature Rating | -40 to 60 deg C |
| Number of Poles | 2 |
| Type | Duplex Tamper Resistant |
| NEMA Rating | NEMA 5-20R |
| Enclosure | NEMA WD-1/WD-6 |
| Terminal Type | Back/Side Wire |
| Brand | Leviton Mfg |
| Color | White |
| Voltage | 125V |
| Type | Straight Blade |
| Amperage | 20A |
| Number | Duplex |
