WATTS 0067452
1 STEAM,HOT WATER RAD VALVE
SKU
108578

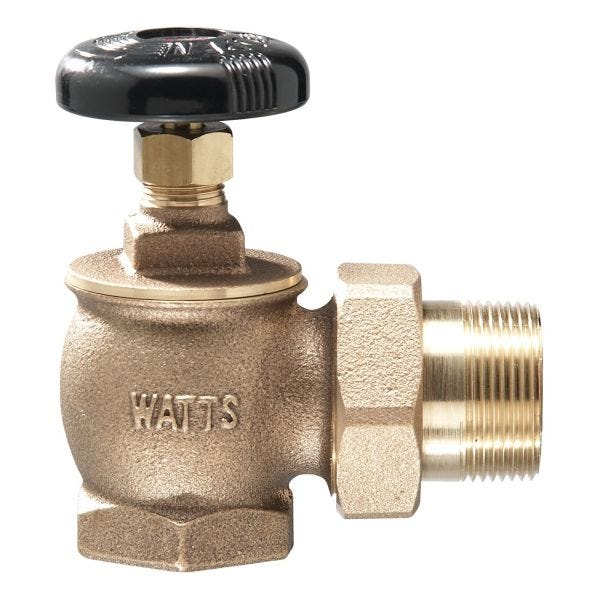

WATTS® Radiator Angle Valve, 1 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Media: Water, Handwheel Actuator, 2-7/8 in Inlet to Outlet Length, 3-5/8 in Top to Inlet Center, Bronze Body, Brass Trim, Rubber Disc Softgoods, Import
- Bronze body
- Angle pattern
- FIP x male union connections
- Constructed of heavy-duty bronze
- Rising Stem
- Renewable composition disc
- Steam radiator valves are used as shutoff valves in steam or hydronic heating systems
- max working Pressure 60psi non-shock water
- Model RA-1-SW comes with straight pattern
| Pressure Rating | 60 psi |
|---|---|
| Media | Water |
| Series | RA-1-AP |
| End Style | FNPT x Male Union |
| Trim Material | Brass |
| Body Material | Bronze |
| Actuator Type | Handwheel |
| Nominal Size | 1 in |
| Inlet to Outlet Length | 2-7/8 in |
| Domestic/Import | Import |
| Top to Inlet Center | 3-5/8 in |
| Softgoods Material | Rubber Disc |
| Brand | Watts |
