Watts Water Technologies 0391009

LF 1" 909QT BKFLO W/1/4 TRN
SKU
564698
The product cannot be delivered by Truck Shipping

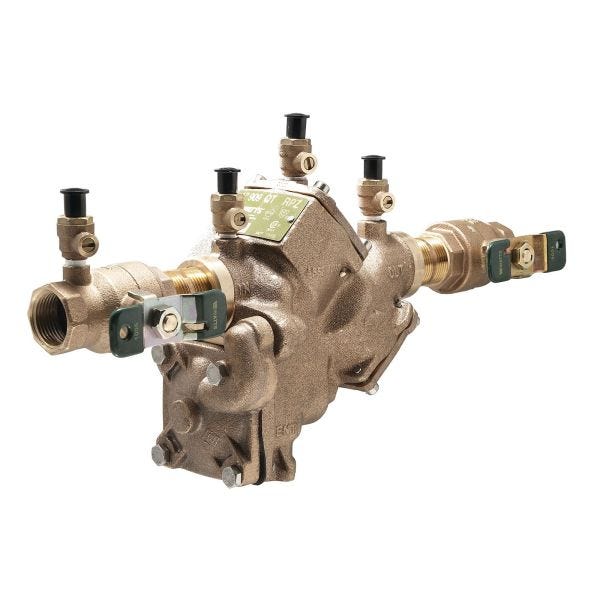

WATTS® Reduced Pressure Zone Assembly, Series: LF909-QT, 1 in Nominal, FNPT, 175 psi, 33 to 110 deg F, Quarter-Turn Ball Valve, Full Port, Cast Copper Silicon Alloy Body, 3-7/8 in W, Domestic

  • Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency condition
  • Quarter-turn ball valves with tee handles
  • Single access cover
  • Top mounted test cock
  • No special tools are required for servicing
  • Modular compact design
  • Replaceable seats
  • Compact for easy of installation
  • Horizontal or vertical (up or down) installation on limited sizes only
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
More Information
End Style FNPT
Temperature Rating 33 to 110 deg F
Domestic/Import Domestic
Ball Valve/Gate Valve Type Quarter-Turn Ball Valve
Dimensions 3-7/8 in W
Port Type Full
Pressure Rating 175 psi
Nominal Size 1 in
Series LF909-QT
Body Material Cast Copper Silicon Alloy
Brand Watts
