WATTS 0437805

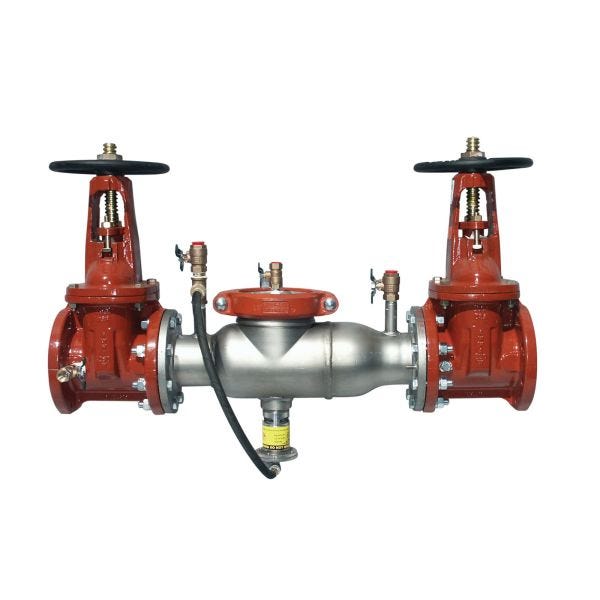

WATTS 3" 994-OSY GATE VALVE
SKU
904924
WATTS®, 0437805, Reduced Pressure Zone Assembly, Series: 994, 3 in Nominal, 175 psi Pressure, 33 to 110 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve, 300 Stainless Steel Body, 38 in L x 7-1/2 in W Dimensions, Domestic
- No special tools are required for servicing
- Stainless steel body is light weight reducing installation and shipping costs
- Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs
- Stainless steel construction provides long term corrosion resistance and maximum strength
- Short end to end dimensions makes retrofit easy
- Bottom mounted relief valve reduces clearance requirements when installed against an outside wall
- Torsion spring check valves provide maximum flow at low pressure drop
- Thermoplastic and stainless steel check valves for trouble-free operation
- Compact construction allows for smaller enclosures
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- UL and FM approved outside stem and yoke resilient seated gate valves
| Temperature Rating | 33 to 110 deg F |
|---|---|
| Domestic/Import | Domestic |
| Ball Valve/Gate Valve Type | Resilient Seated Gate Valve |
| Dimensions | 38 in L x 7-1/2 in W |
| Pressure Rating | 175 psi |
| Nominal Size | 3 in |
| Series | 994 |
| Body Material | 300 Stainless Steel |
| Brand | Watts |
