Goulds 25GS15412CL
25GPM 1-1/2HP 230V 3W L/BOX
SKU
663932

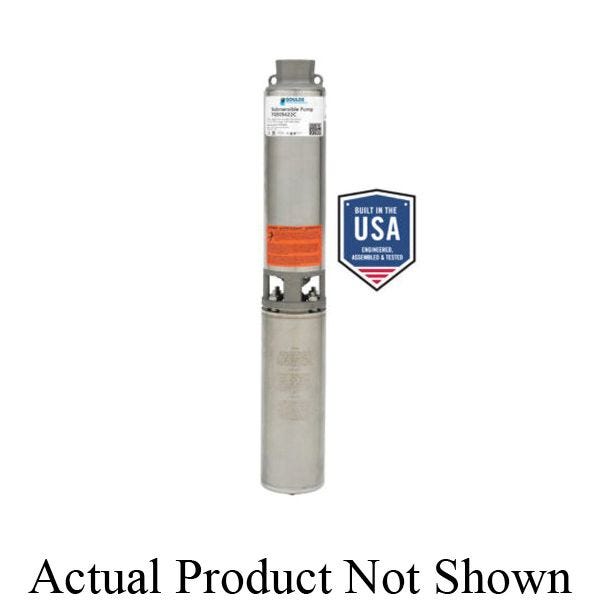

Goulds Submersible Pump, Standard Capacity, Series: 25GS, 25 gpm, 3 Wires, 9 Stage, 170 ft Maximum Head, 1-1/2 hp, 230 VAC, 60 Hz, 1 ph, 3450 rpm Motor, Noryl® Impeller, Proprietary Engineered Polymer Bearing, 304 Stainless Steel
- Field serviceable
- Sand resistant construction
- 4 in motor
- 3.9 in effective diameter with cable guard
- Rotation is counterclockwise when observed from pump discharge end
- 1-1/4 in NPT discharge
- 15.3 in water end L
- 8 to 33 gpm flow range
- Model 25GS15
- Without control box
| Maximum Head | 170 ft |
|---|---|
| Flow Rate | 25 gpm |
| Power Rating | 1-1/2 hp |
| Series | 25GS |
| Phase | 1 ph |
| Frequency Rating | 60 Hz |
| Motor Speed | 3450 rpm |
| Type | Standard Capacity |
| Impeller Type | Noryl® |
| Material | 304 Stainless Steel |
| Bearing Type | Proprietary Engineered Polymer |
| Voltage Rating | 230 VAC |
| Number of Wires | 3 |
| Number of Stages | 9 |
| Brand | Goulds |
