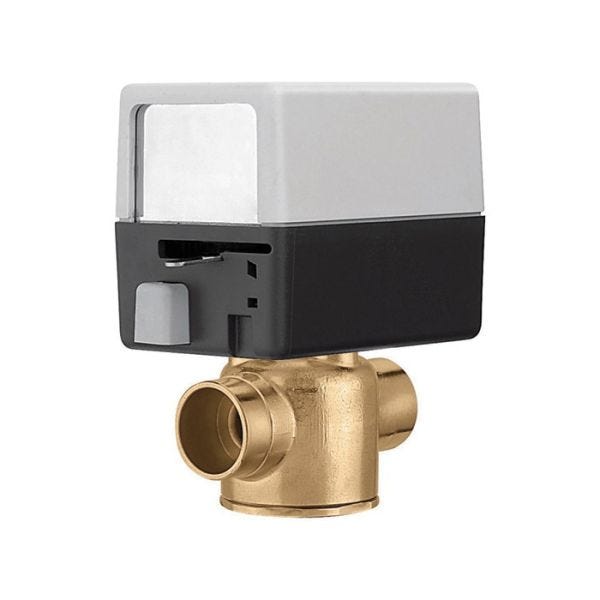

Caleffi Z40
24V NC INVERTED FLARE
SKU
534920
Caleffi Z-one™ Motorized Zone Valve, 2-Way, Series: Z4, Inverted Flare, 300 psi, 3.5 Cv, 24 VAC, 0.4 A, 32 to 240 deg F Water Temperature, 30 psi Differential, 18 in Wire Lead, Forged Brass
- Two-way zone valve
- Spring return
- Normally closed actuator: Z111000
- Auxiliary micro-switch
- Suitable fluids: Water, 50% max glycol, 15 psi max steam
- 5W, 7VA power consumption
- Rating of auxiliary micro-switch contacts: 0 to 0.4 A 24 V
| Pressure Rating | 300 psi |
|---|---|
| Series | Z4 |
| End Style | Inverted Flare |
| Material | Forged Brass |
| Material | Forged Brass |
| Water Temperature | 32 to 240 deg F |
| Differential | 30 psi |
| Electrical Connections | 18 in Wire Lead |
| Coefficient of Volume | 3.5 Cv |
| Amperage Rating | 0.4 A |
| Type | 2-Way |
| Voltage Rating | 24 VAC |
| Brand | Caleffi North America |
