WATTS 0298594
LF223-S 2"LF WATER RED VLV
SKU
576759

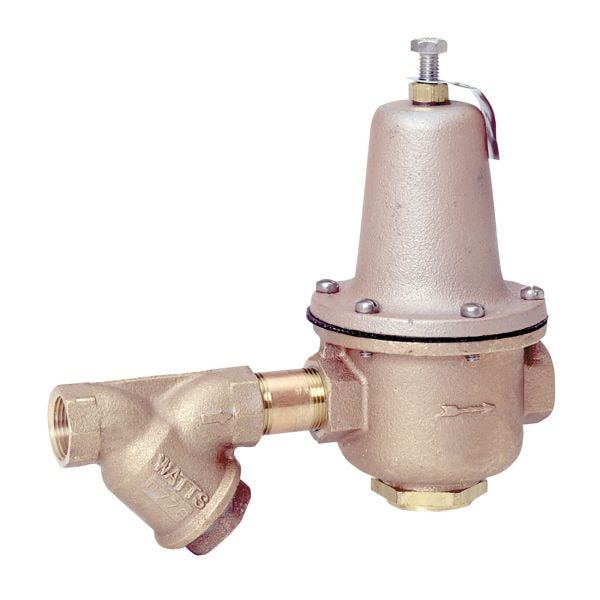

WATTS®, 0298594, Pressure Reducing Valve, High Capacity, Series: LF223, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 8 in Inlet to Outlet Length, 10-3/4 in Top to Inlet Center, Brass Body, Buna-N® O-Ring, Seat Gasket/Reinforced Buna-N® Diaphragm Softgoods, Domestic
- Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
- Sensitive spring and large diaphragm for accurate pressure control
- High temperature resisting diaphragm for hot or cold water
- Enlarged diaphragm, spring cage and seat orifice for super capacity performance
- Lead free brass body construction (except 2-1/2 in (65 mm) which is iron)
- Serviceable in line
- Optional bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
- 25 to 75 psi adjustable reduced pressure range
- 50 psi (345 kPa) standard pressure setting
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
| Inlet to Outlet Length | 8 in |
|---|---|
| Nominal Size | 2 in |
| Top to Inlet Center | 10-3/4 in |
| Series | LF223 |
| Body Material | Brass |
| Softgoods Material | Buna-N® O-Ring, Seat Gasket/Reinforced Buna-N® Diaphragm |
| Temperature Rating | 33 to 160 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Domestic |
| Type | High Capacity |
| End Style | FNPT |
| Brand | Watts |
