WATTS 0555273
LF FBV PEX 3/4 BALL VALVE
SKU
572278

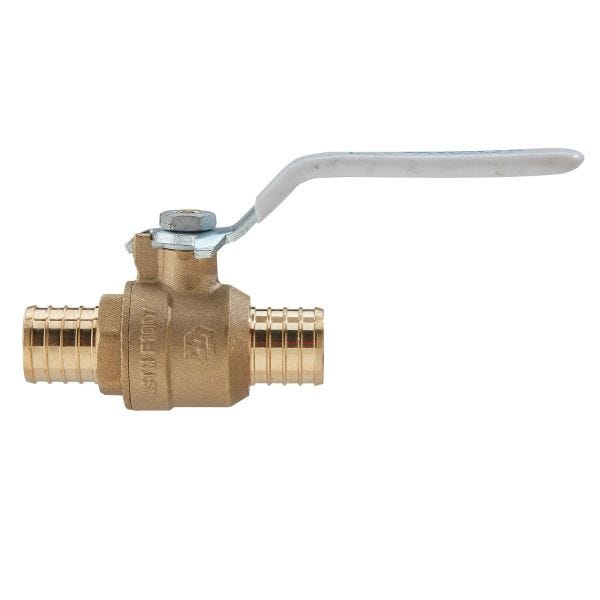

WATTS® Ball Valve, 2-Piece, 3/4 in Nominal, PEX, 400 psi WOG, Full Port, Brass Ball, 2-3/4 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Forged Brass Body, Brass Stem and PTFE Seat Trim, Import
- Forged lead free brass body
- Crimp connection rated to 160 psi at 73 deg (23 deg C)
- Virgin PTFE seats and seals
- PEX ASTM F-1807 end tail pieces for easy crimping into PEX piping
- Designed specifically for use in PEX piping systems
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Port Type | Full |
|---|---|
| End Style | PEX |
| Ball Material | Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2-3/4 in |
| Top to Inlet Center | 1-1/2 in |
| Type | 2-Piece |
| Pressure Rating | 400 psi WOG |
| Body Material | Forged Brass |
| Nominal Size | 3/4 in |
| Series | LFFBV-PEX |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | Watts |
| Type | Ball Valve |
| Size | 3/4" |
