LEGEND 101-426NL
1-1/4" FULL PORT BV S-2000NL
SKU
760848

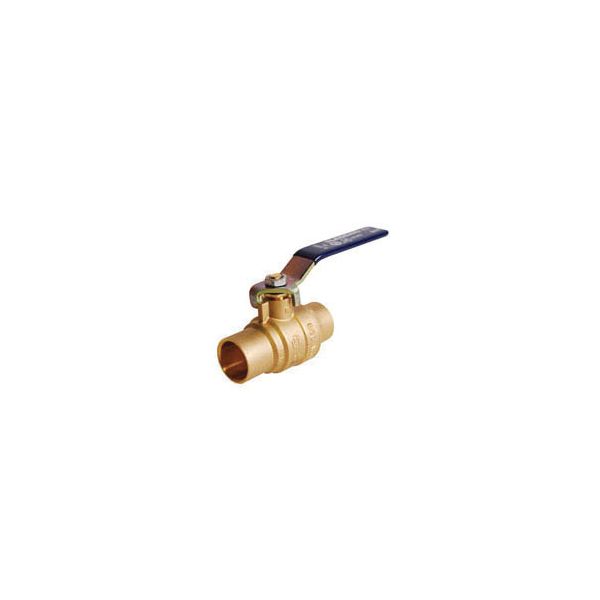

LEGEND Ball Valve, Series: S-2000NL, 1-1/4 in Nominal, C End Style, 600 psi CWP Pressure, Full Port, Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures, Lever Operated Actuator, Stainless Steel Ball, 3.86 in Inlet to Outlet Length, 2.7 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, PTFE/EPDM Rubber Softgoods, Import
- Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
- Dezincification-resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
- Bottom loaded, blow-out proof stem features a dual-seal PTFE packing and EPDM rubber O-Ring design, assuring positive sealing under a multitude of conditions
- Self-cleaning chrome plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions
- 150 psi saturated steam
- PTFE packing and EPDM rubber O-ring
| Softgoods Material | PTFE/EPDM Rubber |
|---|---|
| Port Type | Full |
| End Style | C |
| Media | Natural/Manufactured/Mixed LP Gas/Air Mixtures |
| Ball Material | Stainless Steel |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3.86 in |
| Top to Inlet Center | 2.7 in |
| Pressure Rating | 600 psi CWP |
| Body Material | Forged Brass |
| Nominal Size | 1-1/4 in |
| Series | S-2000NL |
| Actuator Type | Lever Operated |
| Trim Material | Forged Brass Stem and PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 1 1/4" |
