Legend 105-105NL
1"LF IPS CHECK VALVE 200WOG
SKU
595942

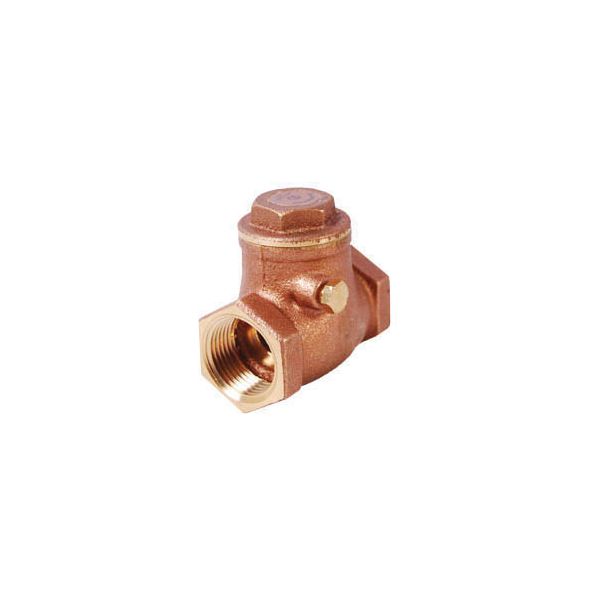

LEGEND LEGEND GREEN™ Swing Check Valve, Lead Free, Series: T-451NL, 1 in Nominal, FNPT, 200 psi CWP, Low Lead Compliance: Yes, Full Port, 2.58 in Inlet to Outlet Length, 1.69 in Top to Inlet Center, Cast Brass Body, Forged Brass Trim, Import
- Durable, full-pattern cast brass body
- Large, integral seat and disc sealing surfaces
- Forged brass hinge pin assures smooth, non-binding disc operation
- T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
- Forged brass disc
| End Style | FNPT |
|---|---|
| Top to Inlet Center | 1.69 in |
| Inlet to Outlet Length | 2.58 in |
| Domestic/Import | Import |
| Trim Material | Forged Brass |
| Low Lead Compliance | Yes |
| Port Type | Full |
| Pressure Rating | 200 psi CWP |
| Nominal Size | 1 in |
| Series | T-451NL |
| Body Material | Cast Brass |
| Brand | Legend |
| Type | Swing Check Valve |
