Legend 105-407NL
1-1/2" BRZ CXC Y-CHECK
SKU
768253

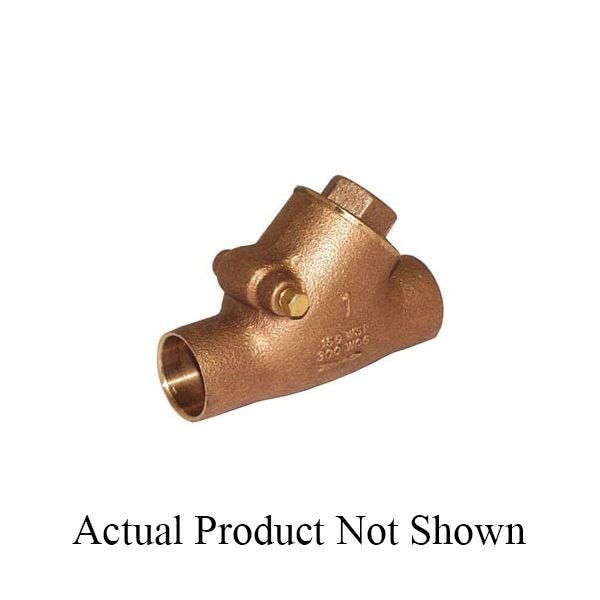

LEGEND Swing Check Valve, Lead Free Y-Pattern, Series: S-453NL, 1-1/2 in Nominal, C, 300 psi CWP, 365 deg F, Low Lead Compliance: Yes, 30 gpm, Full Port, 5.39 in Inlet to Outlet Length, 3.07 in Top to Inlet Center, Bronze Body, Cast Bronze Trim, Import
- Heavy-duty, full-pattern bronze construction resists pipeline stresses and distortion
- Y-pattern body permits exceptional flow rates, typically required in commercial applications
- Large, integral seat and disc are tilted inward at 45 deg, promoting linear flow and minimizing pressure drop
- Uni-directional flow: can be installed in the horizontal (assembly cap upright) or vertical (upward flow only) positions
- Forged brass hinge pin assures smooth, non-binding disc operation
- Lead free design is suitable for all no lead potable water installations in full compliance of all lead-free plumbing laws
- Cast bronze construction
- Cast bronze disc
| Flow Rate | 30 gpm |
|---|---|
| End Style | C |
| Top to Inlet Center | 3.07 in |
| Temperature Rating | 365 deg F |
| Inlet to Outlet Length | 5.39 in |
| Domestic/Import | Import |
| Trim Material | Cast Bronze |
| Low Lead Compliance | Yes |
| Port Type | Full |
| Pressure Rating | 300 psi CWP |
| Nominal Size | 1-1/2 in |
| Type | Y-Pattern |
| Series | S-453NL |
| Body Material | Bronze |
| Brand | Legend |
| Type | Swing Check Valve |
