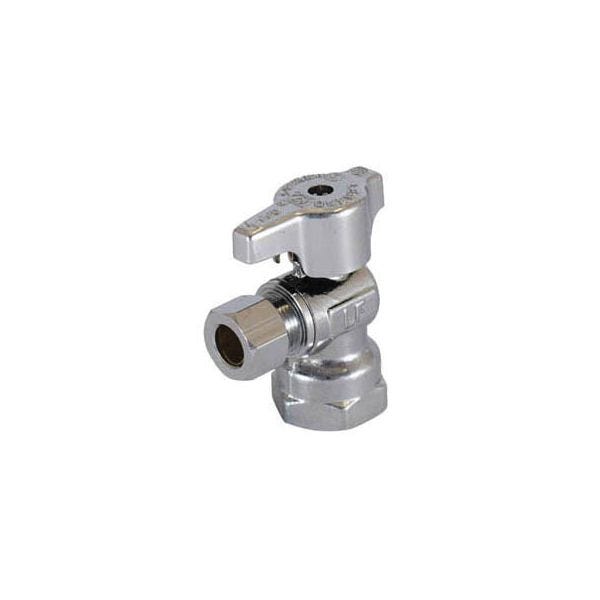

Legend 114-602NL
LF 3/8OD X 3/8"FIP ANGLE STOP
SKU
580363
LEGEND Angle Supply Stop Valve, Lead Free 1/4 Turn, Series: T-595NL, 3/8 in Nominal, FNPT x Compression, 125 psi, Brass Body, Brass/EPDM Trim, 120 deg F, 2.09 in H, Polished Chrome, Import
- Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
- Self-cleaning ball valve design resists mineral and scale build-up, assuring positive shutoff and re-opening
- The ball-seat operation and dual O-ring stem seal features, out-perform traditional multi-turn stop designs
- Compact, forged brass, polished chrome bodies are both durable and decorative
- An ideal upgrade replacement for worn, leaking stops that won't close completely
- EPDM rubber seat
| Series | T-595NL |
|---|---|
| Type | 1/4 Turn |
| Temperature Rating | 120 deg F |
| Domestic/Import | Import |
| Pressure Rating | 125 psi |
| Dimensions | 2.09 in H |
| Body Material | Brass |
| End Style | FNPT x Compression |
| Trim Material | Brass/EPDM |
| Finish | Polished Chrome |
| Nominal Size | 3/8 in |
| Brand | Legend |
| Type | Angle stops |
