Franklin Electric 506158

6-CIA 1/3HP 115V 10' SUMP PUMP
SKU
261178
The product cannot be delivered by Truck Shipping

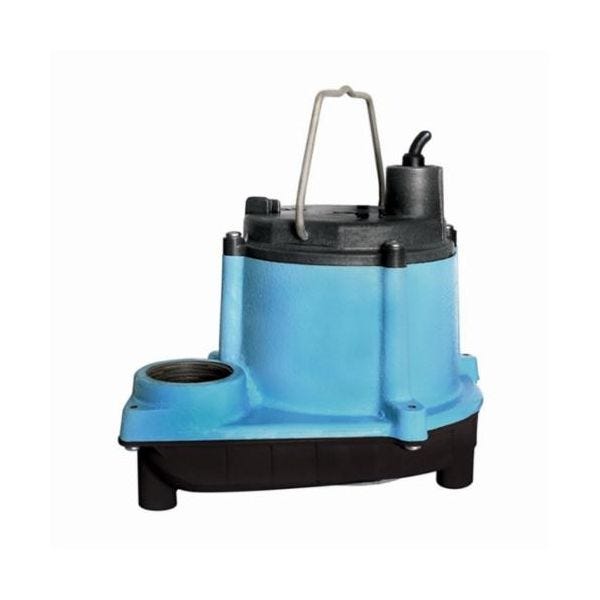

Little Giant® Submersible Sump Pump, Automatic, Series: 6 Series, 12.5 gpm, 1-1/2 in Outlet, 18 ft Maximum Head, 1/3 hp, 115 VAC, 9 A, 50/60 Hz Frequency, 1 ph ph, 7.8 psi Maximum, SJTW Cord, Non-Clogging Impeller, Sintered Flanged Sleeve Bearing, Cast Iron, 9-1/2 in L x 8-1/2 in W x 6 in H Dimensions, Domestic

  • Shaded pole motor with thermal overload protection
  • Designed for continuous duty
  • Oil filled motor housing
  • PVC riser legs (506162 only)
  • 1-1/2 in FNPT discharge
  • Model 6-CIA
  • 12.5 gpm at 15 ft H
More Information
Material Cast Iron
Cord Type SJTW
Frequency Rating 50/60 Hz
Impeller Type Non-Clogging
Bearing Type Sintered Flanged Sleeve
Domestic/Import Domestic
Series 6 Series
Outlet Size 1-1/2 in
Voltage Rating 115 VAC
Flow Rate 12.5 gpm
Maximum Head 18 ft
Dimensions 9-1/2 in L x 8-1/2 in W x 6 in H
Phase 1 ph
Amperage Rating 9 A
Horsepower 1/3 hp
Type Automatic
Maximum Pressure 7.8 psi
Brand Little Giant
