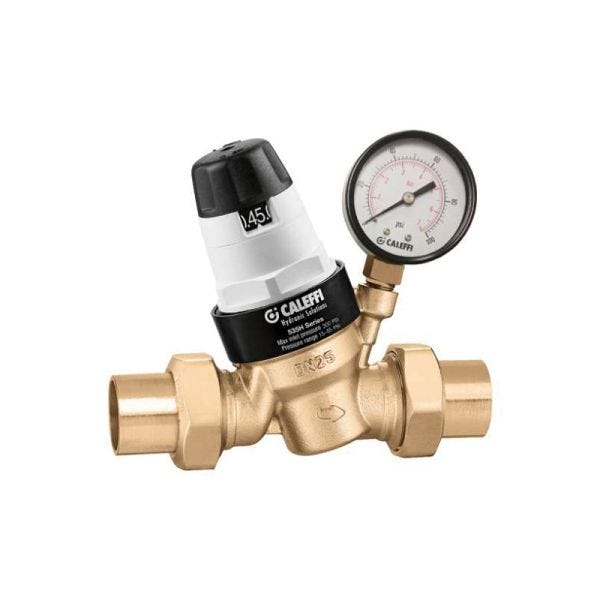

Caleffi 535341HA
REDUCING VALVE 1/2" NPT
SKU
727100
Caleffi Pressure Reducing Valve, Pre-Adjustable, Series: 535H, 1/2 in Nominal, FNPT, 180 deg F, 7.3 gpm, Media: Water, 5-3/4 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, Forged Brass Body, Stainless Steel Trim, Peroxide-Cured EPDM Diaphragm/Seal
- Low lead dezincification resistant "Ecobrass" body
- Unique noise reducing pressure balanced cartridge
- Low friction and anti-scale moving parts
- High flow seat design
- Dial indicator with direct readout
- Replaceable cartridge
- Integral stainless steel filter
- Adjustment locking screw
| Media | Water |
|---|---|
| Series | 535H |
| End Style | FNPT |
| Trim Material | Stainless Steel |
| Body Material | Forged Brass |
| Flow Rate | 7.3 gpm |
| Type | Pre-Adjustable |
| Temperature Rating | 180 deg F |
| Nominal Size | 1/2 in |
| Inlet to Outlet Length | 5-3/4 in |
| Top to Inlet Center | 4-1/2 in |
| Softgoods Material | Peroxide-Cured EPDM Diaphragm/Seal |
| Brand | Caleffi North America |
